Hyundai i30 (PD): Specifications & Consumer information / Load and speed capacity tyres, Air conditioning system, Vehicle weight and luggage volume

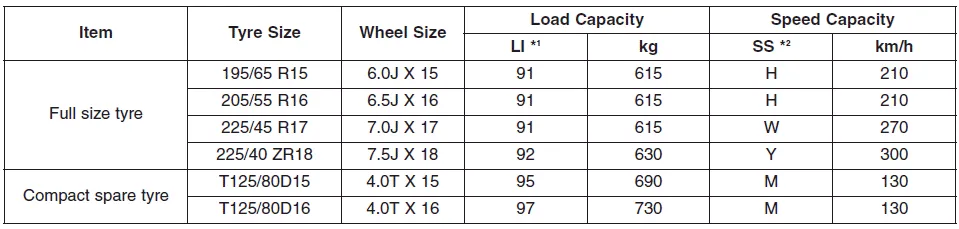

Load and speed capacity tyres
*1 LI : LOAD INDEX
*2 SS : SPEED SYMBOL

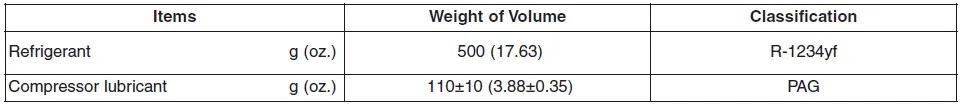

Air conditioning system
Contact a HYUNDAI authorised repairer for more details.

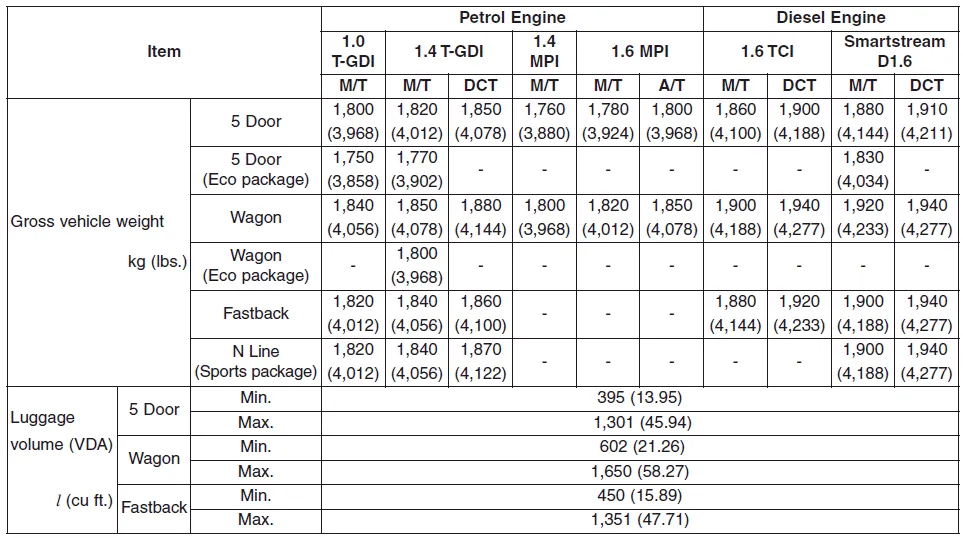

Vehicle weight and luggage volume
M/T : Manual transmission
A/T : Automatic transmission
DCT : Dual clutch transmission
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof.
Full size tyre *1 : In order to drive at high speed(over 100mph or 160km/h) where the speed is lega, adjust tyre pressure as shown in above table.
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct lubricants also help promote engine efficiency that results in improved fuel economy.
