Hyundai i30 (PD): Installing a Child Restraint System (CRS) / Suitability of each seating position for ISOFIX Child Restraint Systems according to ECE regulations - Fastback

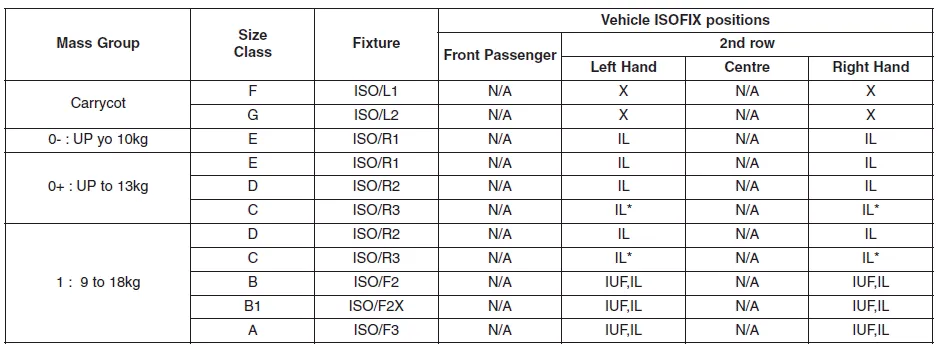

IUF = suitable for ISOFIX forward child restraints systems of universal
category approved for use in the mass group.
IL = suitable for particular ISOFIX child restraints systems (CRS) given
in the attached list. These ISOFIX CRS are those of the "specific
vehicle", "restricted" or "semi-universal" categories.
IL* = suitable for particular ISOFIX child restraints systems (CRS)
given in the attached list.
Driver Seat : Seat Height should be up highest position
Passenger Seat : Seat should be move foremost position.
X = ISOFIX position not suitable for ISOFIX child restraint system in
this mass group and/or this size class.
A - ISO/F3: Full-Height Forward-Facing toddler Child Restraint System
(height 720mm)
B - ISO/F2: Reduced-Height Forward-Facing toddler Child Restraint
System (height 650mm)
B1 - ISO/F2X: Reduced-Height Second Version Back Surface Shape
Forward-Facing toddler Child Restraint System (height 650mm)
C - ISO/R3: Full-Size Rearward-Facing toddler Child Restraint System
D - ISO/R2: Reduced-Size Rearward-Facing toddler Child Restraint System
E - ISO/R1: Infant-Size Rearward-Facing Child Restraint System
F - ISO/L1: Left Lateral Facing position Child Restraint System (carry-cot)
G - ISO/L2: Right Lateral Facing position Child Restraint System (carry-cot)
IUF = Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group. IL = Suitable for particular ISOFIX child restraints systems (CRS) given in the attached list.
When not using the ISOFIX system, all Child Restraint Systems must be secured to a rear seat with the lap part of a lap/shoulder belt. Installing a Child Restraint System with a lap/shoulder belt To install a Child Restraint System on the rear seats, do the following: 1.
