Hyundai i-30: Front Seat / Front Seat Cushion Cover
Components and components location
![](images/front_seat_cushion_cover-877/380/spdbd70318d.gif)

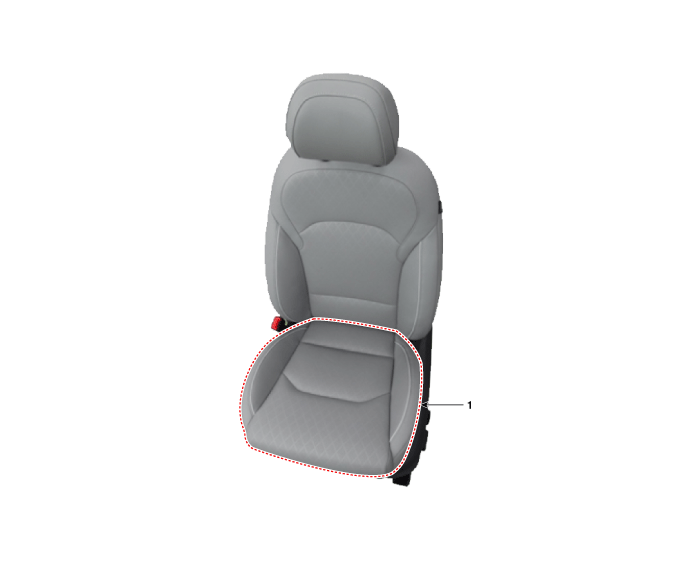

1. Front seat
cushion cover
|
|
Repair procedures
•
|
Put on gloves to prevent hand injuries.
|
|
•
|
When removing with a flat-tip screwdriver or remover, wrap protective
tape around the tools to prevent damage to components.
|
•
|
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
•
|
Take care not to bend or scratch the trim and panels.
|
|
1. |
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
|
2. |
Remove the front seat shield inner cover.
(Refer to Front Seat - "Front Seat Inner Cover")
|
3. |
Remove the front seat shield outer cover.
(Refer to Front Seat - "Front Seat Outer Cover")
|
4. |

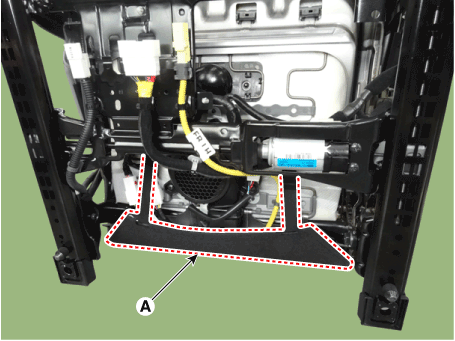

Remove the front seat lower protector (A).
![](images/front_seat_cushion_cover-877/380/spdbd70308d_n.gif)
|
5. |

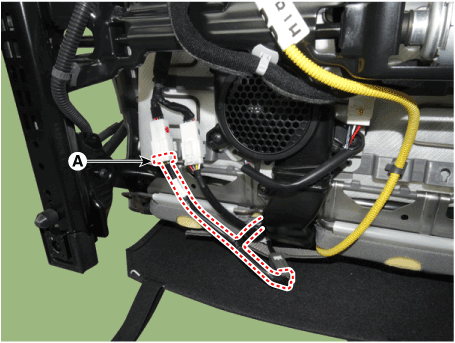

Disconnect the connectors (A).
![](images/front_seat_cushion_cover-877/380/spdbd70320d_n.gif)
|
6. |
Remove the protector (A) from the front seat cushion frame.

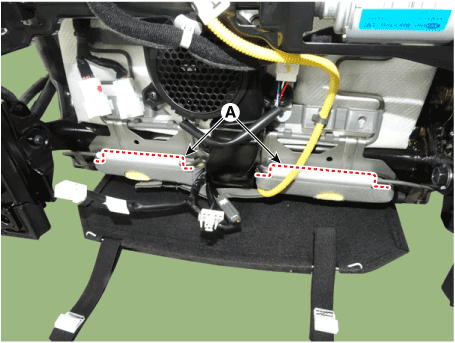

[Lower]
![](images/front_seat_cushion_cover-877/380/spdbd70321d_n.gif)

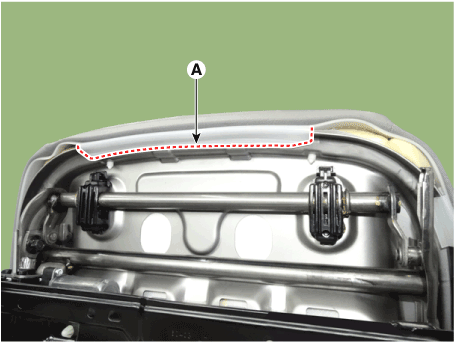

[Upper]
![](images/front_seat_cushion_cover-877/380/spdbd70322d_n.gif)

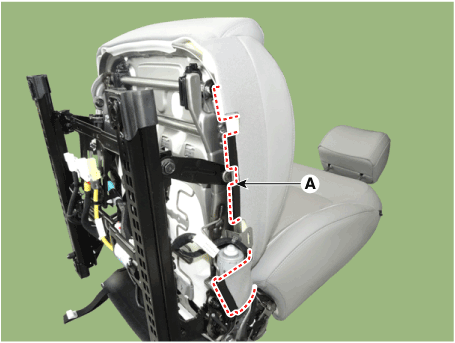

[LH]
![](images/front_seat_cushion_cover-877/380/spdbd70323d_n.gif)

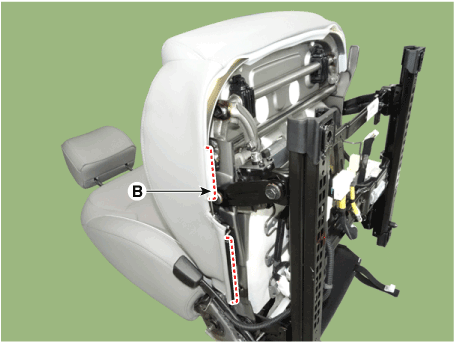

[RH]
![](images/front_seat_cushion_cover-877/380/spdbd70324d_n.gif)
|
7. |

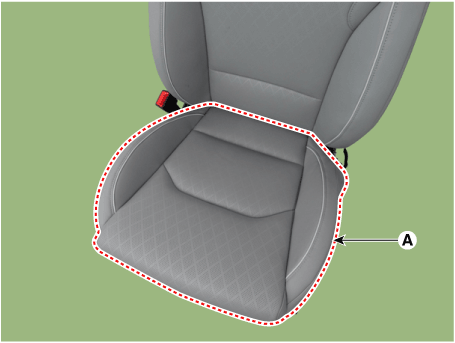

Remove the front seat cushion cover (A) from the front seat cushion
frame.
![](images/front_seat_cushion_cover-877/380/spdbd70325d_n.gif)
|
8. |

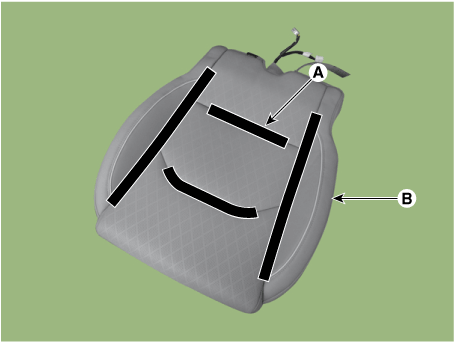

After removing the Velcro tape (A) inside the front seat cushion cover,
remove the seat cushion cover (B).
![](images/front_seat_cushion_cover-877/380/spdbd70326d_n.gif)
|
9. |

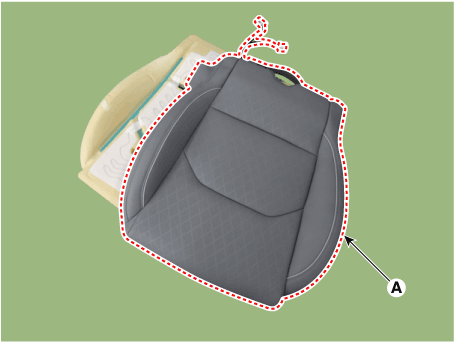

Remove the front seat cushion cover (A) from the front seat cushion
pad.
![](images/front_seat_cushion_cover-877/380/spdbd70327d_n.gif)
|
10. |
To install, reverse removal procedure.
|
