Hyundai i-30: Rear Door / Rear Door Belt Inside Weatherstrip

Hyundai i30 (PD) 2018-2025 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Belt Inside Weatherstrip

Repair procedures
Replacement
1.
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
2.

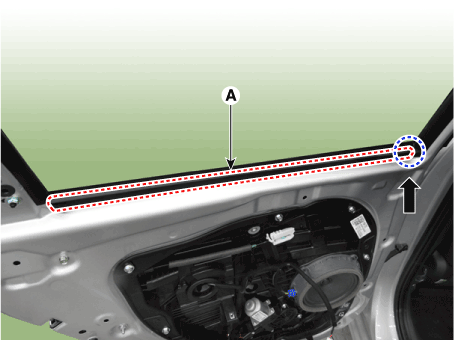

Remove the rear door belt inside weatherstrip (A).
3.
To install, reverse removal procedure.

•
When installing, install it by first contacting the inside part (basis point of assembly) of arrow to door frame.
•
Replace any damaged clips.
