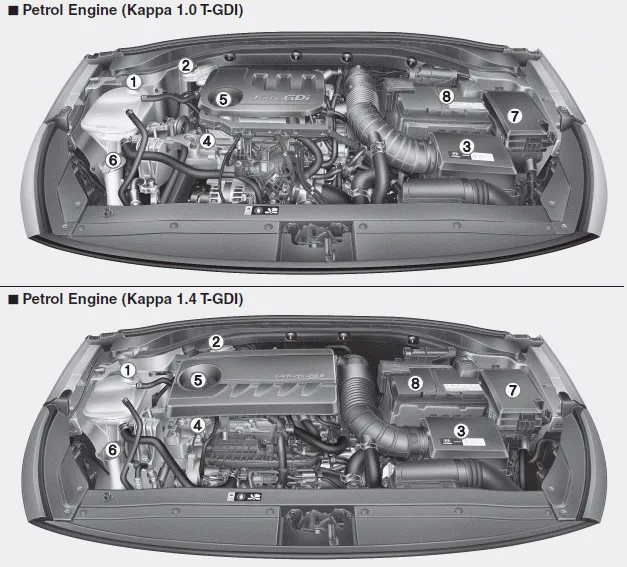

Hyundai i30. Engine compartment

1. Engine coolant reservoir/ Engine coolant cap
2.Brake/clutch fluid reservoir
3. Air cleaner
4. Engine oil dipstick
5. Engine oil filler cap
6.Windscreen washer fluid reservoir
7.Fuse box
8. Battery

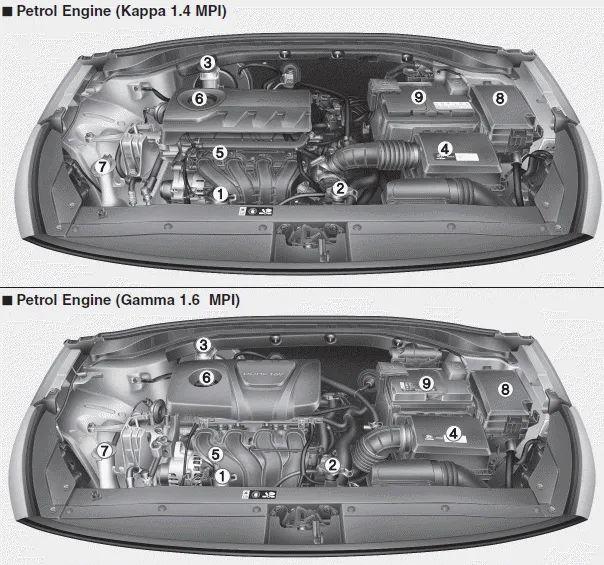

Hyundai i30. Engine compartment

1. Engine coolant reservoir
2. Radiator cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windscreen washer fluid reservoir
8. Fuse box
9. Battery

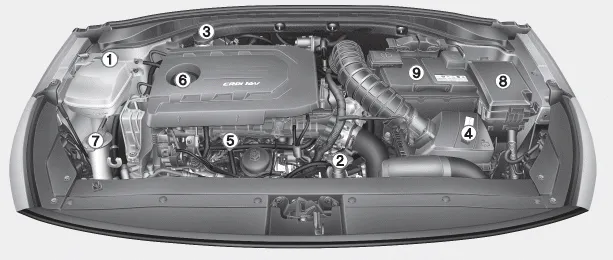

Hyundai i30. Engine compartment

■ Diesel Engine (U2 1.6 TCI)

1. Engine coolant reservoir
2. Radiator cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windscreen washer fluid reservoir
8. Fuse box
9. Battery

Hyundai i30. Engine compartment

■ Diesel Engine (Smartstream D1.6)

1. Engine coolant reservoir/ Engine coolant cap
2. Fuse box
3. Battery
4. Brake/clutch fluid reservoir
5. Air cleaner
6. Engine oil dipstick
7. Engine oil filler cap
8. Windscreen washer fluid reservoir

❮Maintenance

Maintenance services❯

You should exercise the utmost care to prevent damage to your vehicle and injury to yourself whenever performing any maintenance or inspection procedures.
