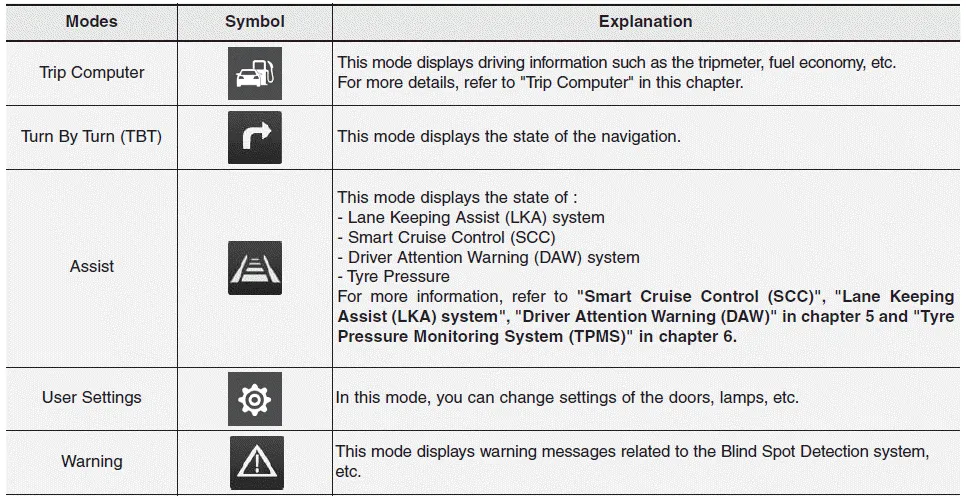

Hyundai i30 (PD): LCD Display / LCD display modes

Settings available after engaging parking brake / Settings available after shifting to P

This warning message illuminates if you try to select an item from the User Settings mode whilst driving.

- Manual transmission

For your safety, change the User Settings after engaging the parking brake.

- Automatic transmission / dual clutch transmission

For your safety, change the User Settings after parking the vehicle, applying the parking brake and moving the shift lever to P (Park).

Quick guide (Help, if equipped)

This mode provides quick guides for the systems in the User Settings mode.

Select an item, press and hold the OK button.

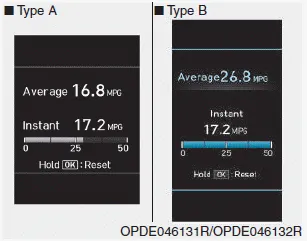

Trip computer mode

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and vehicle speed.

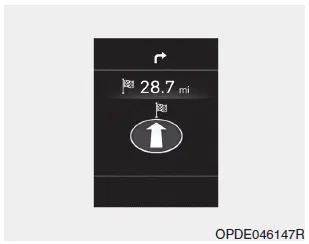

Turn By Turn (TBT) mode

This mode displays the state of the navigation.

Assist mode

SCC/LKA/LDW/DAW

This mode displays the state of the Smart Cruise Control (SCC), Lane Departure Warning (LDW) system/ Lane Keeping Assist (LKA) system and Driver Attention Warning (DAW).

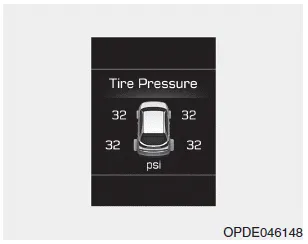

Tyre Pressure

This mode displays information related to Tyre Pressure.

Warning message mode

If one of followings occurs, warning messages will be displayed on the LCD display for several seconds.

- Low washer fluid (if equipped)
- Exterior lamp malfunction (if equipped)
- High Beam Assist (HBA) malfunction (if equipped)
- Blind-Spot Collision Warning (BCW) malfunction (if equipped)
- Forward Collision-Avoidance Assist (FCA) malfunction (if equipped)
- Intelligent Speed Limit Warning (ISLW) malfunction (if equipped)
- Smart Cruise Control (SCC) malfunction (if equipped)
- Tyre Pressure Monitoring System (if equipped, TPMS)

• User settings mode
