Hyundai i30 (PD): Convenient features of your vehicle / Mirrors
Inside rearview mirror
Before you start driving, adjust the rearview mirror to the centre on the view through the rear window.
WARNING
Make sure your line of sight is not obstructed. Do not place objects in the rear seat, cargo area, or behind the rear head restraints which could interfere with your vision through the rear window.
WARNING
To prevent serious injury during an accident or deployment of the air bag, do not modify the rearview mirror and do not install a wide mirror.
WARNING
NEVER adjust the mirror whilst driving. This may cause loss of vehicle control resulting in an accident.
NOTICE
When cleaning the mirror, use a paper towel or similar material dampened with glass cleaner. Do not spray glass cleaner directly on the mirror as that may cause the liquid cleaner to enter the mirror housing.

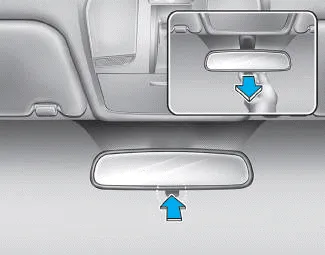

Day/night rearview mirror
Make this adjustment before you start driving and whilst the day/night lever is in the day position.
Pull the day/night lever towards you to reduce glare from the headlamps of the vehicles behind you during night driving.
Remember that you lose some rearview clarity in the night position.

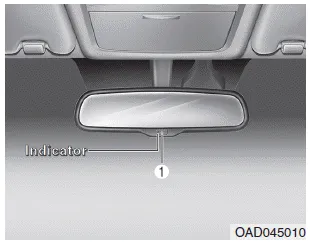

Electric Chromic Mirror (ECM) (if equipped)
The electric rearview mirror automatically controls the glare from the headlamp of the vehicle behind you in nighttime or low light driving conditions.
When the engine is running, the glare is automatically controlled by the sensor mounted in the rearview mirror. The sensor detects the light level around the vehicle, and automatically adjusts to control the headlamp glare from vehicles behind you.
Whenever the shift lever is placed in R (Reverse), the mirror will automatically go to the brightest setting in order to improve the driver's view behind the vehicle.
To operate the electric rearview mirror:
- Press the ON/OFF button (1) to turn the automatic dimming function off. The mirror indicator light will turn off. Press the ON/OFF button (1) to turn the automatic dimming function on. The mirror indicator light will illuminate.
- The mirror defaults to the ON position whenever the ignition switch is in the ON position.
To sound the horn, press the area indicated by the horn symbol on your steering wheel. The horn will operate only when this area is pressed. NOTICE Do not strike the horn severely to operate it, or hit it with your fist.
Be sure to adjust mirror angles before driving. Your vehicle is equipped with both left-hand and right-hand outside rearview mirrors. The mirror can be adjusted remotely with the remote switch.
