Hyundai i30 (PD): Instrument cluster / Transmission shift indicator

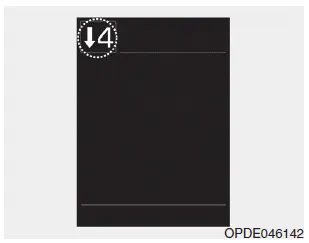

Manual transmission shift indicator
This indicator informs which gear is recommended whilst driving, to save fuel.
- Shifting up : â–²2, â–²3, â–²4, â–²5, â–²6
- Shifting down :â–¼1, â–¼2, â–¼3, â–¼4, â–¼5
For example
: Indicates that shifting up to
the
3rd gear is recommended (currently
the shift lever is in the
2nd or 1st gear).
: Indicates that shifting down to
the 3rd gear is recommended
(currently the shift lever is in the
4th, 5th, or 6th gear).
When the system is not working properly, the indicator is not displayed.

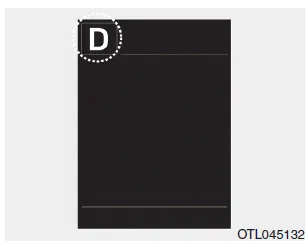

Automatic transmission shift indicator
This indicator displays which automatic transmission shift lever position is selected.
- Park :P
- Reverse : R
- Neutral : N
- Drive :D
- Manual Shift Mode : 1, 2, 3, 4, 5, 6

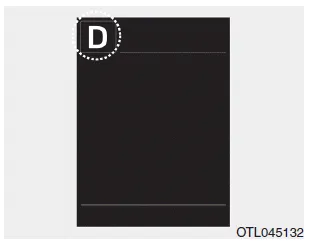

Dual clutch transmission shift indicator
This indicator displays which shift lever position is selected.
- Park :P
- Reverse : R
- Neutral : N
- Drive :D
- Manual Shift Mode : D1, D2, D3, D4, D5, D6, D7

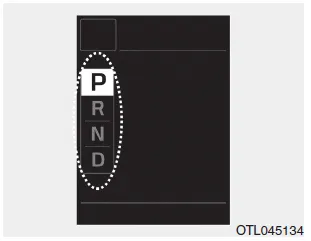

Shift Indicator Pop-up
The pop-up that indicates the current gear position is displayed in the cluster for about 2 seconds when shifting into other positions (P/R/N/D).
Automatic transmission shift indicator / Dual clutch transmission shift indicator
In the manual shift mode, this indicator informs which gear is desired whilst driving to save fuel.
- Automatic transmission shift indicator
- Shifting up :â–²2, â–²3, â–²4, â–²5, â–²6
- Shifting down :â–¼1, â–¼2, â–¼3, â–¼4, â–¼5 - Dual clutch transmission shift indicator
- Shifting up :â–²2, â–²3, â–²4, â–²5, â–²6, â–²7
- Shifting down :â–¼1, â–¼2, â–¼3, â–¼4, â–¼5, â–¼6
For example
: Indicates that shifting up to
the
3rd gear is desired (currently
the shift lever is in the 2nd or
1st gear).
: Indicates that shifting down to
the 3rd gear is desired (currently
the shift lever is in the 4th,
5th, or 6th gear).
When the system is not working properly, the indicator is not displayed.
Speedometer The speedometer indicates the speed of the vehicle and is calibrated in kilometers per hour (km/h) and/or miles per hour (MPH). Tachometer The tachometer indicates the approximate number of engine revolutions per minute (rpm).
Information Make sure that all warning lights are OFF after starting the engine. If any light is still ON, this indicates a situation that needs attention.
