Hyundai i-30: LCD display messages / Door, Bonnet, Tailgate open. Sunroof open

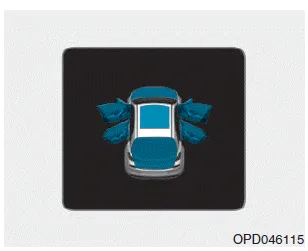

Door, Bonnet, Tailgate open

This warning is displayed indicating
which door, or bonnet, or tailgate is
open.
CAUTION
Before driving the vehicle, you
should confirm that the door/
bonnet/tailgate is fully closed.
Also, check there is no door/
bonnet/tailgate open warning
light or message displayed on
the instrument cluster.

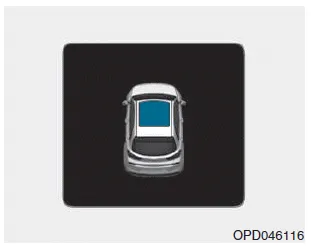

Sunroof open

This warning is displayed if you turn
off the engine when the sunroof is
open.
Close the sunroof securely when
leaving your vehicle.
Shift to P
(for smart key system and automatic
transmission/dual clutch
transmission)
This warning message is displayed if
you try to turn off the engine without
the shift lever in P (Park) position...
Lights mode
This indicator displays which exterior
light is selected using the lighting
control.
Wiper
This indicator displays which wiper
speed is selected using the wiper
control...
