Hyundai i-30: Door locks / Operating door locks from inside the vehicle

Hyundai i30 (PD) 2018-2021 Owner's Manual / Convenient features of your vehicle / Door locks / Operating door locks from inside the vehicle

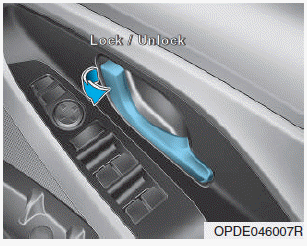

With the door handle

Hyundai i30. inside the vehicle

Front door

If the inner door handle is pulled when the door is locked, the door will unlock and open.

Rear door

If the inner door handle is pulled once when the door is locked, the door will unlock.

If the inner door handle is pulled once more, the door will open.

Information

If a power door lock ever fails to function whilst you are in the vehicle try one or more of the following techniques to exit:

  • Operate the door unlock feature repeatedly (both electronic and manual) whilst simultaneously pulling on the door handle.
  • Operate the other door locks and handles, front and rear.
  • Lower a front window and use the mechanical key to unlock the door from outside.

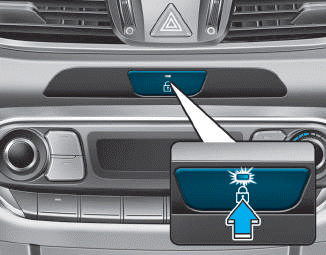

With the central door lock/unlock switch

Hyundai i30. inside the vehicle

  • With a door unlocked
    - If you press the central door lock switch, all vehicle doors will lock and the indicator light on the switch will illuminate.
    - If any door is opened when the switch is pressed, no doors will lock.
  • With all doors locked
    - If you press the central door unlock switch, all vehicle doors will unlock.
    - If any door is unlocked, the indicator on the central door lock switch will go out.

Information

The indicator light on the switch blinks for approximately one minute when a door is unlocked or the tailgate is opened.

WARNING

  • The doors should always be fully closed and locked whilst the vehicle is in motion. If the doors are unlocked, the risk of being thrown from the vehicle in a crash is increased.
  • Do not pull the inner door handle of driver’s(or passenger’s) door whilst the vehicle is moving.

WARNING

Do not leave children or animals unattended in your vehicle. An enclosed vehicle can become extremely hot, causing death or serious injury to unattended children or animals who cannot escape the vehicle.

Children might operate features of the vehicle that could injure them, or they could encounter other harm, possibly from someone gaining entry to the vehicle.

WARNING

Leaving your vehicle unlocked can allow theft or entry into the vehicle.

To secure your vehicle, whilst depressing the brake, move the shift lever to the P (Park) position (for automatic transmission/ dual clutch transmission) or first gear or R (Reverse, for manual transmission), engage the parking brake, and place the ignition switch in the LOCK/OFF position, close all windows, lock all doors, and always take the key with you.

WARNING

Opening a door when something is approaching may cause damage or injury. Be careful when opening doors and watch for vehicles, motorcycles, bicycles or pedestrians approaching the vehicle in the path of the door.

WARNING

If you stay in the vehicle for a long time whilst the weather is very hot or cold, there are risks of injuries or danger to life. Do not lock the vehicle from the outside when someone is in the vehicle.
