Hyundai i30 (PD): Fuse/Relay panel description / Engine compartment fuse panel

Inside the fuse/relay box covers, you can find the fuse/relay label describing fuse/relay names and ratings.

Information

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.

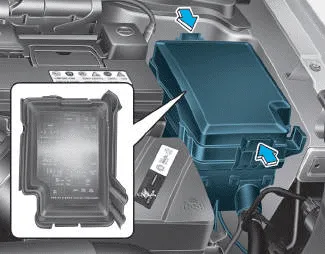

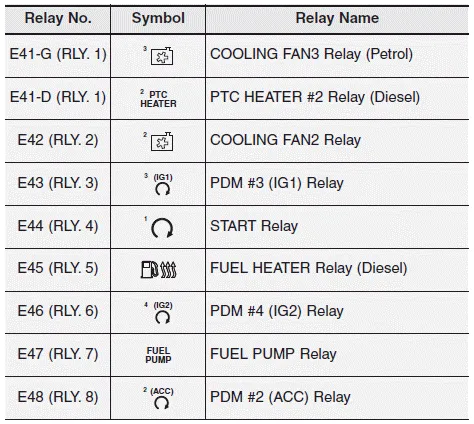

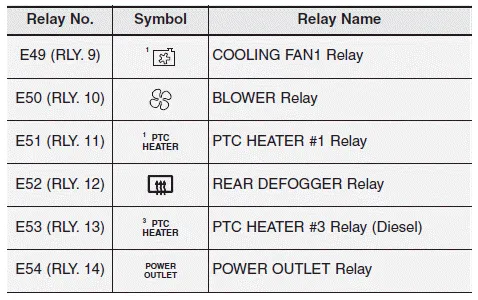

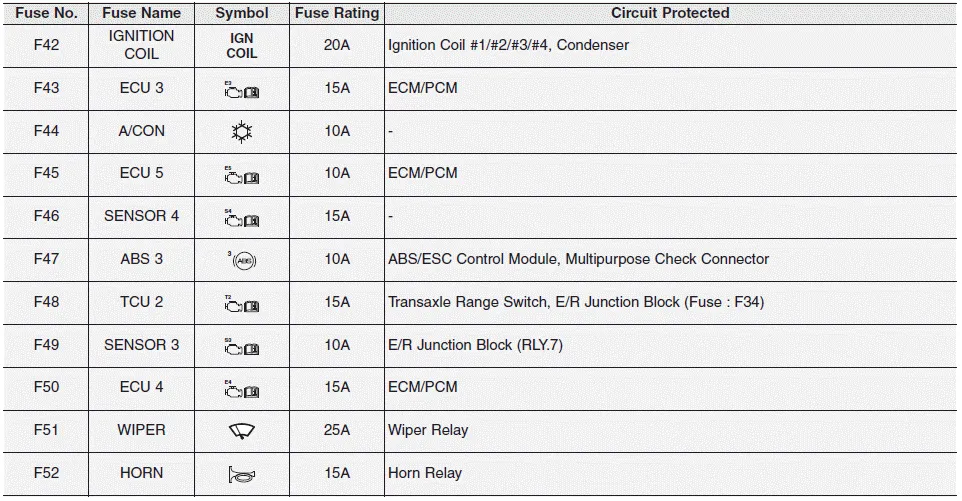

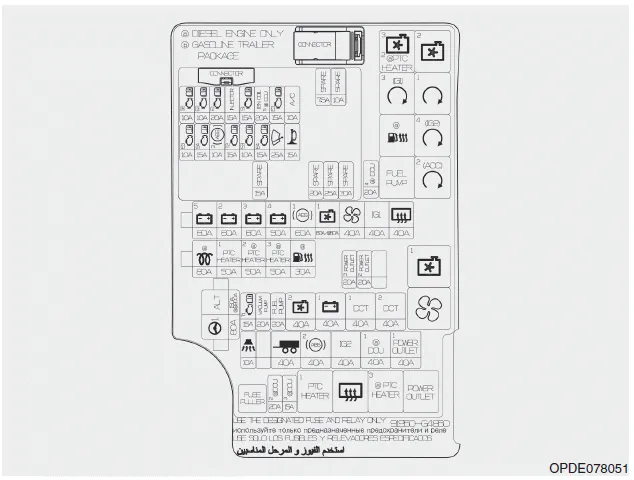

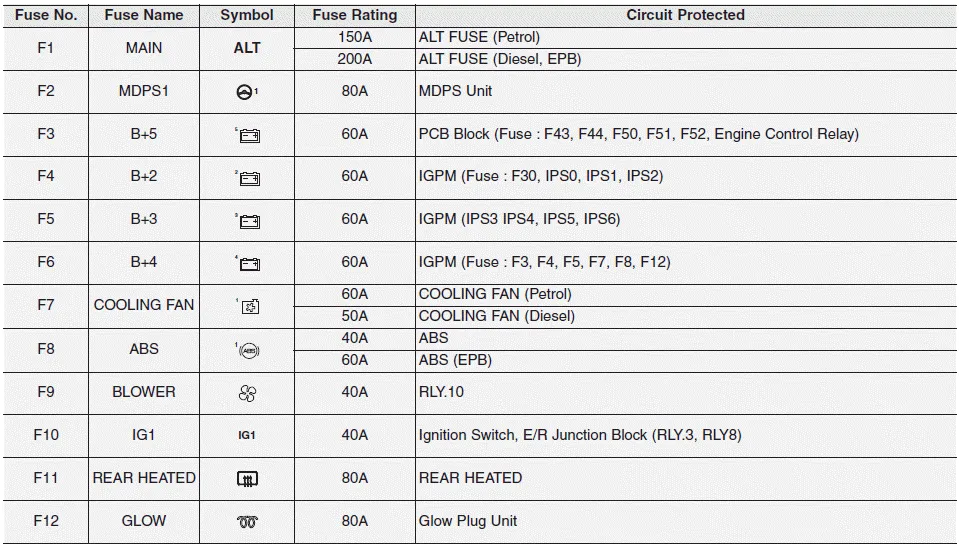

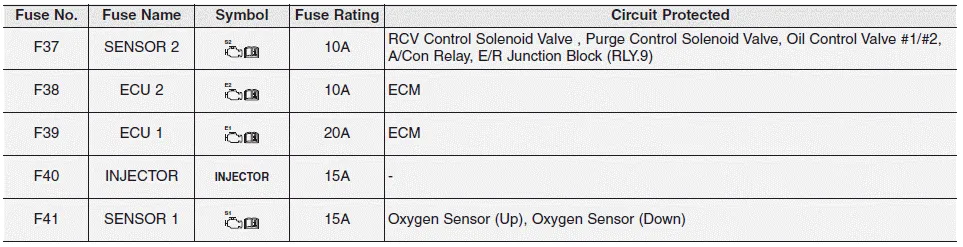

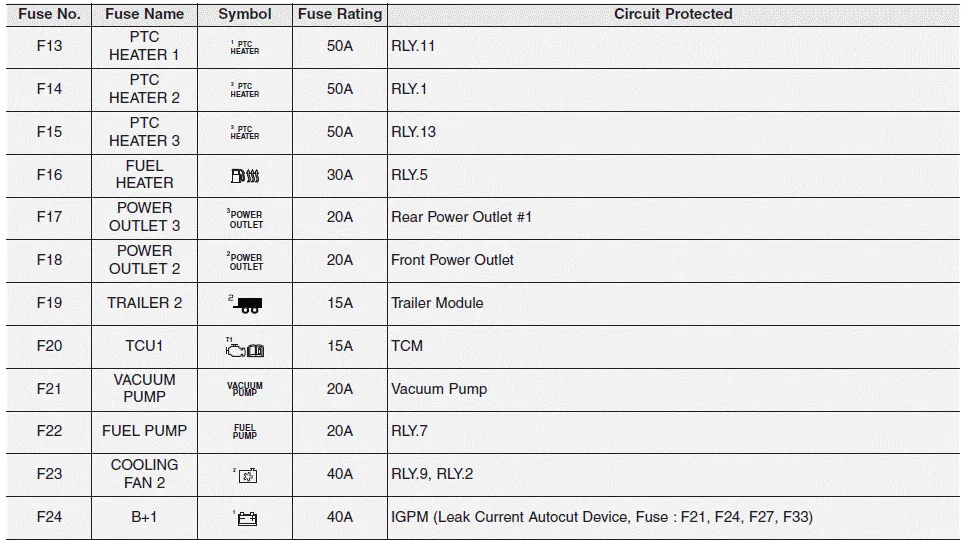

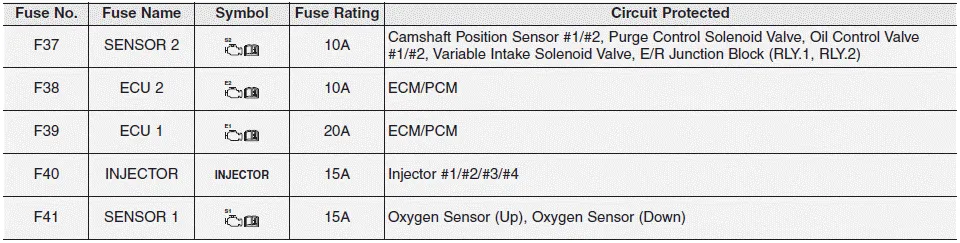

Engine compartment fuse panel

Engine compartment fuse panel

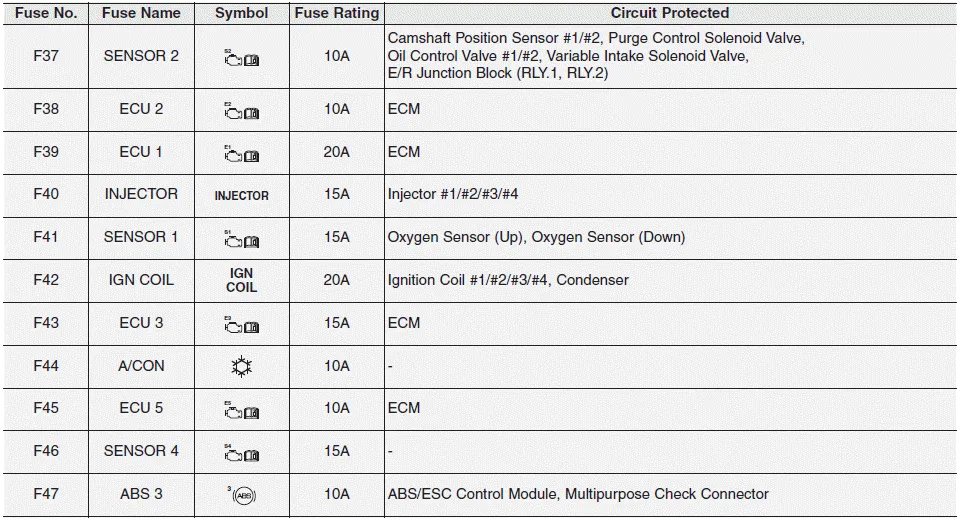

â–  Kappa 1.4L MPI

â–  Kappa 1.4L MPI

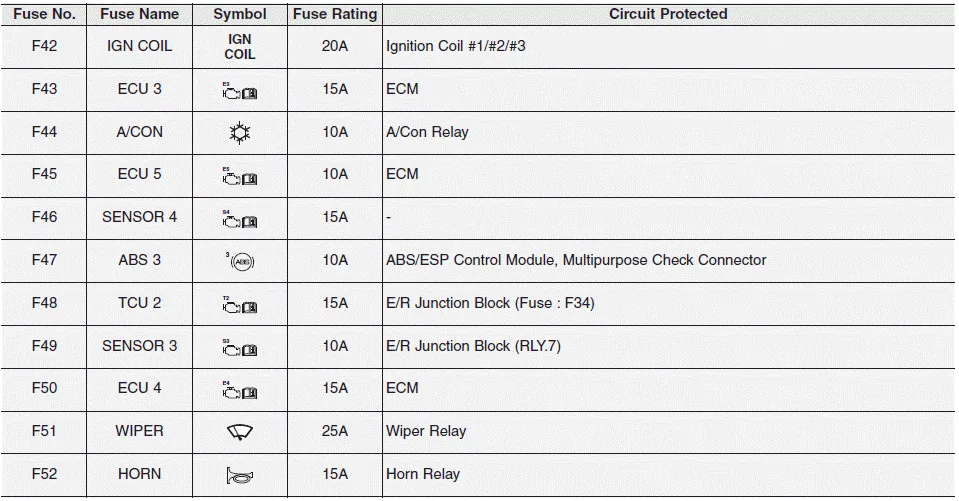

â–  Kappa 1.0L T-GDI

â–  Kappa 1.0L T-GDI

â–  Kappa 1.4L T-GDI

â–  Kappa 1.4L T-GDI

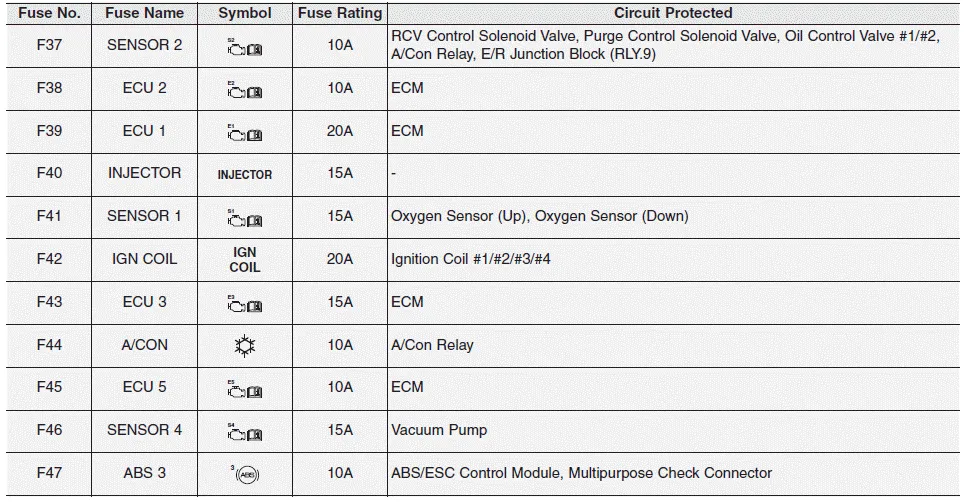

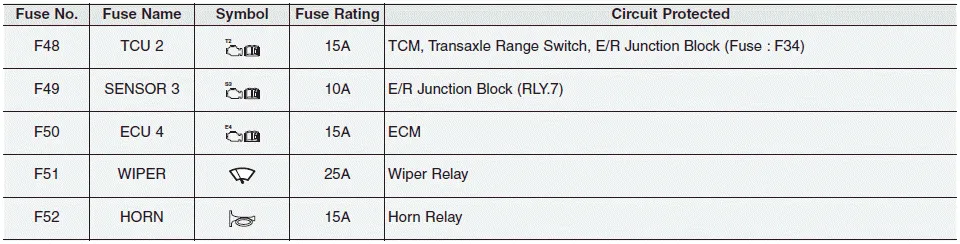

â–  Gamma 1.6L MPI

â–  Gamma 1.6L MPI

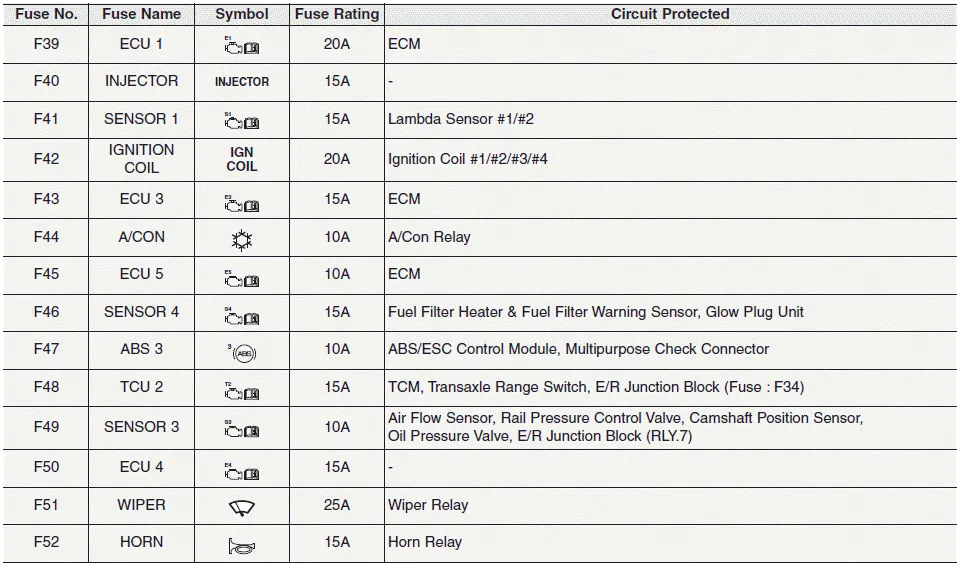

â–  U-II 1.6L VGT

â–  U-II 1.6L VGT

â–  Smartstream D1.6

â–  Smartstream D1.6
