Hyundai i30 (PD): Interior lights / Front & Rear lamps

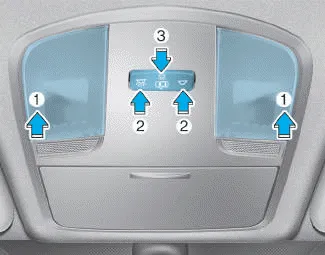

Front lamps
(1) Front Map Lamp
(2) Front Room Lamp
(3) Front Door Lamp
Front map lamp
Press the map lamp lens (1) to turn ON the map lamp. Re-press the map lamp lens to turn OFF the map lamp.
Front room lamp
•
:
Press the button to turn ON the room lamp for the front/rear seats.
•
:
Press the button to turn OFF the room lamp for the front/rear seats.
Front door lamp (
)
The room lamp for the front/rear seats is automatically turned ON for approximately 30 seconds, when a door is opened.
The room lamp for the front/rear seats is automatically turned ON for approximately 15 seconds, when the remote key (smart key) unlocks the doors. The room lamp fades out, when the ignition switch is placed to the ON position in 15 seconds. The room lamp remains ON up to 20 minutes, when a door is opened with the ignition switch in the either the ACC or OFF position.

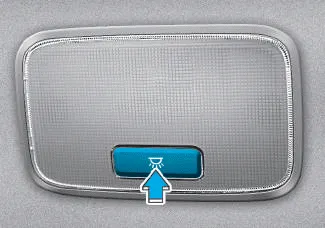

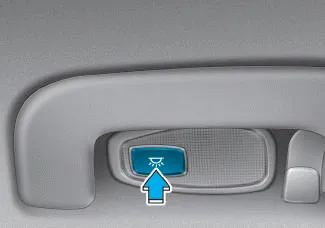

Rear lamps
â– Type A
â– Type B
Rear room lamp switch :
Press this button to turn the room lamp on and off.
NOTICE
Do not leave the lamp switches on for an extended period of time when the engine is turned off.
NOTICE Do not use the interior lights for extended periods when the engine is turned off otherwise the battery will discharge. WARNING Do not use the interior lights when driving in the dark.
Glove box lamp The glove box lamp comes on when the glove box is opened. NOTICE To prevent unnecessary charging system drain, close the glove box securely after using the glove box.
