Hyundai i30 (PD): Power windows / Power window lock switch

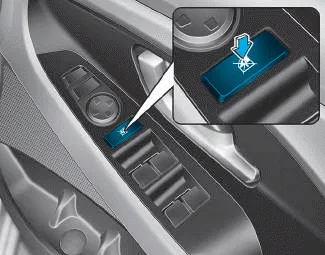

Hyundai i30. Power window lock switch

The driver can disable the power window switches on the rear passengers' doors by pressing the power window lock switch.

When the power window lock switch is pressed:

  • The driver's master control can operate all the power windows.
  • The front passenger's control can operate the front passenger's power window.
  • The rear passenger's control cannot operate the rear passengers' power window.

WARNING

Do not allow children to play with the power windows. Keep the driver’s door power window lock switch in the LOCK position. Serious injury or death can result from unintentional window operation by a child.

NOTICE

  • To prevent possible damage to the power window system, do not open or close two windows or more at the same time. This will also ensure the longevity of the fuse.
  • Never try to operate the main switch on the driver's door and the individual door window switch in opposite directions at the same time. If this is done, the window will stop and cannot be opened or closed.

WARNING

  • NEVER leave the keys in your vehicle with unsupervised children, when the engine is running.
  • NEVER leave any child unattended in the vehicle. Even very young children may inadvertently cause the vehicle to move, entangle themselves in the windows, or otherwise injure themselves or others.
  • Always double check to make sure all arms, hands, head and other obstructions are safely out of the way before closing a window.
  • Do not allow children to play with the power windows. Keep the driver’s door power window lock switch in the LOCK position (pressed). Serious injury can result from unintentional window operation by the child.
  • Do not extend your head, arms or body outside the windows whilst driving.

    If a window senses any obstacle whilst it is closing automatically, it will stop and lower approximately 30 cm (12 inches) to allow the object to be cleared.

    To raise or lower the window, turn the window regulator handle clockwise or counterclockwise. WARNING When opening or closing the windows, make sure your passenger's arms, hands and body are safely out of the way.
