Hyundai i30. Engine compartment

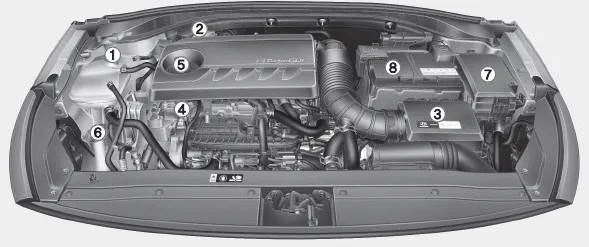

â–  Petrol Engine (Kappa 1.0 T-GDI)

Hyundai i30. Engine compartment

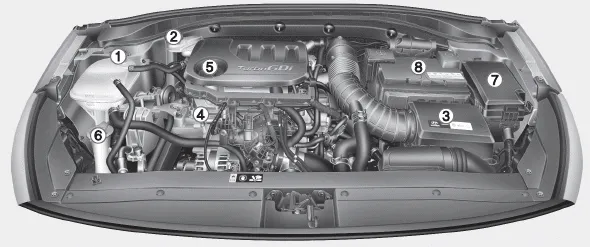

â–  Petrol Engine (Kappa 1.4 T-GDI)

1. Engine coolant reservoir/Engine coolant cap
2. Brake/clutch fluid reservoir
3. Air cleaner
4. Engine oil dipstick
5. Engine oil filler cap
6. Windscreen washer fluid reservoir
7. Fuse box
8. Battery

Hyundai i30. Engine compartment

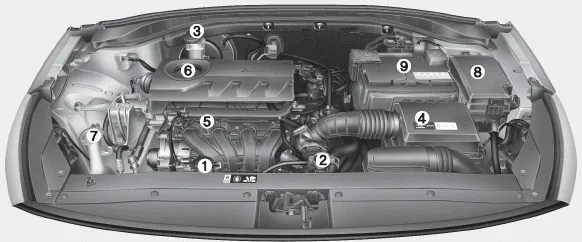

â–  Petrol Engine (Kappa 1.4 MPI)

Hyundai i30. Engine compartment

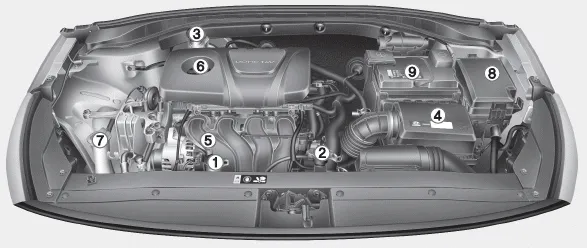

â–  Petrol Engine (Gamma 1.6 MPI)

1. Engine coolant reservoir
2. Radiator cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windscreen washer fluid reservoir
8. Fuse box
9. Battery

Hyundai i30. Engine compartment

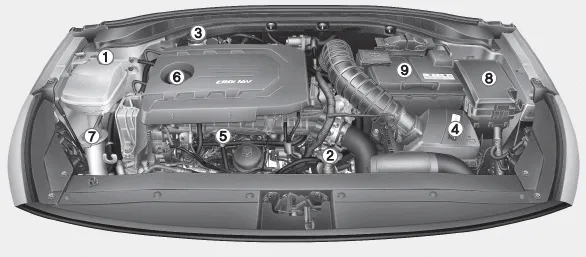

â–  Diesel Engine (U2 1.6 TCI)

1. Engine coolant reservoir
2. Radiator cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windscreen washer fluid reservoir
8. Fuse box
9. Battery

Hyundai i30. Engine compartment

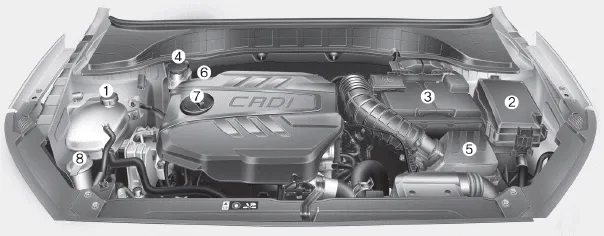

â–  Diesel Engine (Smartstream D1.6 T-GDI)

1. Engine coolant reservoir/Engine coolant cap
2. Fuse box
3. Battery
4. Brake/clutch fluid reservoir
5. Air cleaner
6. Engine oil dipstick
7. Engine oil filler cap
8. Windscreen washer fluid reservoir
