Hyundai i30 (PD): Exterior lights / Warning light and message

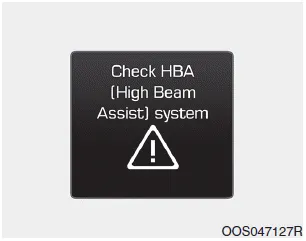

When the High Beam Assist (HBA) System is not working properly, the warning message will come on for a few second. After the message disappears, the master warning light () will illuminate.

We recommend that you take your vehicle to a HYUNDAI authorised repairer and have the system checked.

CAUTION

The system may not operate normally if any of the following conditions should occur:

1) When the illumination from an on-coming vehicle or a vehicle in front is dim. Such examples may include:

• When the headlamps of an oncoming vehicle or the tail lamps of a vehicle in front is covered with dust, snow, or water
• When the headlamps on an on-coming vehicle are OFF, but the fog lamps are ON)

2) When the High Beam Assist camera is adversely affected by an external condition. Such examples may include:

• When the vehicle's headlamps have been damaged or not repaired properly
• When the vehicle headlamps are not aimed properly
• When the vehicle is driven on a narrow curved road or rough road
• When the vehicle is driven on an uphill road or downhill road
• When only part of the vehicle in front is visible on a crossroad or curved road
• When there is a traffic light, reflecting sign, flashing sign or mirror
• When the road conditions are bad such as being wet or covered with snow
• When a vehicle suddenly appears from a curve
• When the vehicle is tilted from a flat tyre or being towed
• When the Lane Keeping Assist (LKA) system warning light illuminates
• When the light from the oncoming or front vehicle is not detected because of exhaust fume, smoke, fog, snow, etc.
• When the front window is covered with foreign matters such as

3) When the forward visibility is poor. Such examples may include:

• When the headlamps of an oncoming vehicle or a vehicle in front is not detected due to poor outside visibility (smog, smoke, dust, fog, heavy rain, snow, etc.)
• When the windscreen visibility is poor

Information

When you replace or reinstall the windscreen glass or LDW/LKA camera (if equipped), We recommend that you take your vehicle to a HYUNDAI authorised repairer and have the system checked.

WARNING

• Do not attempt to disassemble the front view camera without the assistance of a HYUNDAI authorised repairer technician. If camera is removed for any reason, the system may need to be re-calibrated. We recommend that the system be inspected by a HYUNDAI authorised repairer.
• If the windscreen of your vehicle is replaced, most likely the front view camera will need to be re-calibrated. If this occurs, have your vehicle inspected and have the system re-calibrated by a HYUNDAI authorised repairer.
• Be careful that water doesn’t get into the High Beam Assist (HBA) unit and do not remove or damage related parts of the High Beam Assist (HBA) system.
• Do not place objects on the crash pad that reflect light such as mirrors, white paper, etc. The system may malfunction if sunlight is reflected.
• At times, the High Beam Assist (HBA) may not work properly. The system is for your convenience only. It is the responsibility of the driver for safe driving practices and always check the road conditions for your safety.
• When the system does not operate normally, change the lamp position manually between the high beam and low beam.
