Hyundai i30 (PD): Convenient features of your vehicle / Wipers and washers

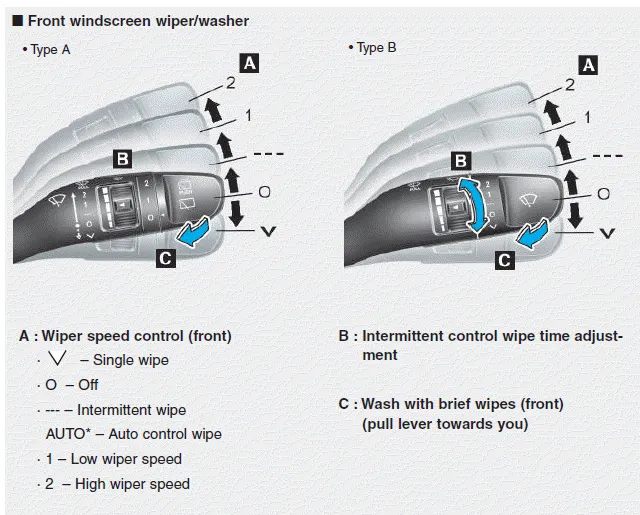

Windscreen wipers. AUTO (Automatic) control

Operates as follows when the ignition switch is turned ON.

: For a single wiping cycle, move the lever down and release it. The wipers will operate continuously if the lever is held in this position.

O : Wiper is not in operation

--- : Wiper operates intermittently at the same wiping intervals. Use this mode in light rain or mist. To vary the speed setting, turn the speed control knob.

1 : Normal wiper speed

2 : Fast wiper speed

Information

If there is heavy accumulation of snow or ice on the windscreen, defrost the windscreen for about 10 minutes, or until the snow and/or ice is removed before using the windscreen wipers to ensure proper operation.

If you do not remove the snow and/or ice before using the wiper and washer, it may damage the wiper and washer system.

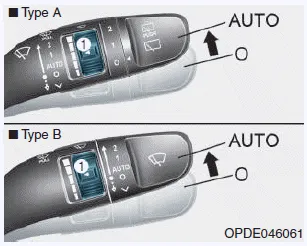

AUTO (Automatic) control

The rain sensor located on the upper end of the windscreen glass senses the amount of rainfall and controls the wiping cycle for the proper interval. The more it rains, the faster the wiper operates.

When the rain stops, the wiper stops. To vary the speed setting, turn the speed control knob (1).

If the wiper switch is set in AUTO mode when the ignition switch is in the ON position, the wiper will operate once to perform a self-check of the system. Set the wiper to OFF position when the wiper is not in use.

WARNING

To avoid personal injury from the windscreen wipers, when the engine is running and the windscreen wiper switch is placed in the AUTO mode:

• Do not touch the upper end of the windscreen glass facing the rain sensor.
• Do not wipe the upper end of the windscreen glass with a damp or wet cloth.
• Do not put pressure on the windscreen glass.

NOTICE

• When washing the vehicle, set the wiper switch in the O position to stop the auto wiper operation. The wiper may operate and be damaged if the switch is set in the AUTO mode whilst washing the vehicle.
• Do not remove the sensor cover located on the upper end of the passenger side windscreen glass. Damage to system parts could occur and may not be covered by your vehicle warranty.

Windscreen washers. Front windscreen wiper service position

In the O position, pull the lever gently toward you to spray washer fluid on the windscreen and to run the wipers 1-3 cycles. The spray and wiper operation will continue until you release the lever.

If the washer does not work, you may need to add washer fluid to the washer fluid reservoir.

WARNING

When the outside temperature is below freezing, ALWAYS warm the windscreen using the defroster to prevent the washer fluid from freezing on the windscreen and obscuring your vision which could result in an accident and serious injury or death.

NOTICE

• To prevent possible damage to the washer pump, do not operate the washer when the fluid reservoir is empty.
• To prevent possible damage to the wipers or windscreen, do not operate the wipers when the windscreen is dry.
• To prevent damage to the wiper arms and other components, do not attempt to move the wipers manually.
• To prevent possible damage to the wipers and washer system, use anti-freezing washer fluids in the winter season or cold weather.

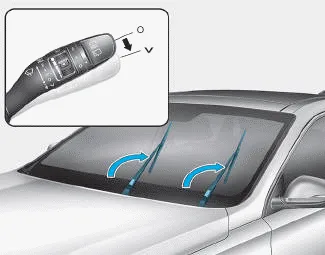

Front windscreen wiper service position

This vehicle has a "hidden" wiper design which means that the wipers cannot be lifted when they are in their bottom resting position.

1. Within 20 seconds of turning off the engine, move the wiper lever down and hold it to the position for about 2 seconds until the wipers move to the top wipe position.

2. At this time you can lift the wipers off the windscreen.

3. Gently put the wipers back down onto the windscreen.

4. Turn the wipers to any ON position to return the wipers to the bottom resting position.

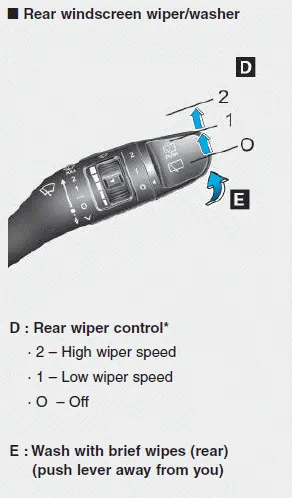

Rear window wiper and washer switch

The rear window wiper and washer switch is located at the end of the wiper and washer switch lever.

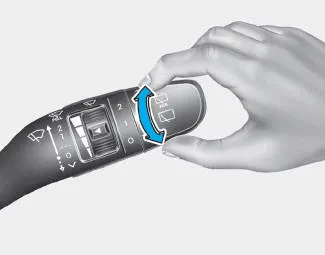

Turn the switch to the desired position to operate the rear wiper and washer.

2 – High wiper speed
1 – Low wiper speed
O – Off

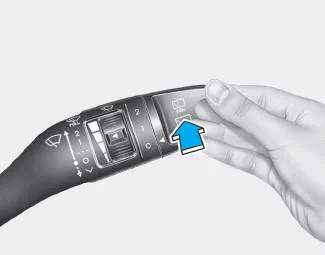

Push the lever away from you to spray rear washer fluid and to run the rear wipers 1~3 cycles. The spray and wiper operation will continue until you release the lever. (if equipped)

Auto rear wiper (if equipped)

The rear wiper will operate whilst the vehicle is in reverse with the front wiper ON by selecting the function on the LCD display.

Go to ‘User Settings → Convenience → Auto Rear Wiper (reverse)’.
