Hyundai i-30: Immobilizer System / Schematic diagrams

Hyundai i30 (PD) 2018-2025 Service Manual / Body Electrical System / Immobilizer System / Schematic diagrams

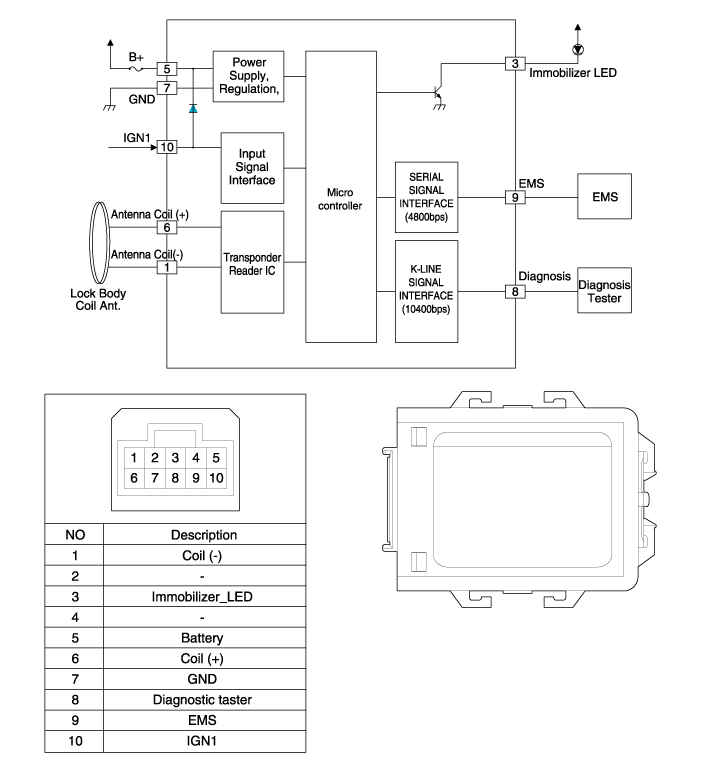

Circuit Diaram

    Immobilizer System

    ..

    Description and operation

    Description The immobilizer system will disable the vehicle unless the proper ignition key is used, in addition to the currently available anti-theft systems such as car alarms, the immobilizer system aims to drastically reduce the rate of auto theft...
