Hyundai i-30: Smart cruise control (SCC) with stop & go system / Smart Cruise Control speed

Hyundai i30 (PD) 2018-2024 Owner's Manual / Driving your vehicle / Smart cruise control (SCC) with stop & go system / Smart Cruise Control speed

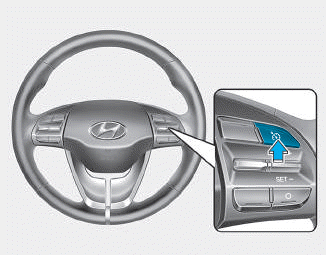

To set Smart Cruise Control speed

Hyundai i30. Smart Cruise Control speed

1. Push the Hyundai i30. Smart Cruise Control speed button on the steering wheel to turn the system on. The cruise (Hyundai i30. Smart Cruise Control speed) indicator will illuminate.

2. Accelerate to the desired speed. The Smart Cruise Control speed can be set as follows:

  • 20 mph (30 km/h)~110 mph (180 km/h) : when there is no vehicle in front
  • 0 mph (0 km/h)~110 mph (180 km/h) : when there is a vehicle in front

Hyundai i30. Smart Cruise Control speed

3. Push the toggle switch down (SET-). The Set Speed and Vehicle-to- Vehicle Distance on the LCD display will illuminate.

4. Release the accelerator pedal. The desired speed will automatically be maintained.

If there is a vehicle in front of you, the speed may decrease to maintain the distance to the vehicle ahead.

On a steep grade, the vehicle may slow down or speed up slightly whilst going uphill or downhill.

Information

Vehicle speed may decrease on an upward slope and increase on a downward slope.

To increase Smart Cruise Control set speed

Hyundai i30. Smart Cruise Control speed

Follow either of these procedures:

  • Push the toggle switch up (RES+), and release it immediately. The cruising speed will increase by 1 mph (1 km/h) each time you move the toggle switch up in this manner.
  • Push the toggle switch up (RES+), and hold it. Your vehicle set speed will increase by 5 mph (10 km/h). Release the toggle switch at the speed you want.
  • You can set the speed to 110 mph (180 km/h).

CAUTION

Check the driving condition before using the toggle switch. Driving speed sharply increases, when you push up and hold the toggle switch.

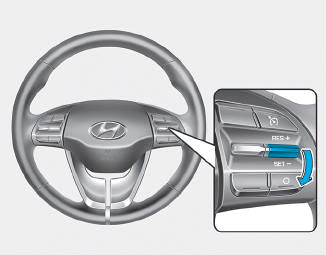

To decrease the Smart Cruise Control set speed

Hyundai i30. Smart Cruise Control speed

Follow either of these procedures:

  • Push the toggle switch down (SET-), and release it immediately. The cruising speed will decrease by 1 mph (1 km/h) each time you move the toggle switch down in this manner.
  • Push the toggle switch down (SET-), and hold it. Your vehicle set speed will decrease by 5 mph (10 km/h). Release the toggle switch at the speed you want.
  • You can set the speed to 20 mph (30 km/h).

To temporarily accelerate with the Smart Cruise Control on

If you want to speed up temporarily when the Smart Cruise Control is on, depress the accelerator pedal. Increased speed will not interfere with Smart Cruise Control operation or change the set speed.

To return to the set speed, take your foot off the accelerator pedal.

If you push the toggle switch down (SET-) at increased speed, the cruising speed will be set again pedal.

Information

Be careful when accelerating temporarily, because the speed is not controlled automatically at this time even if there is a vehicle in front of you.

Smart cruise control (SCC) with stop & go system

➀ Cruise indicator ➁ Set speed ➂ Vehicle-to-vehicle distance To see the SCC screen on the LCD display in the cluster, select ASSIST mode ()...

Smart Cruise Control will be temporarily cancelled when

Cancelled manually Depressing the brake pedal. Pressing the button located on the steering wheel. The Smart Cruise Control turns off temporarily when the Set Speed and Vehicle-to-Vehicle Distance indicator on the LCD display turns off...
