Speed Limit Control operation

You can set the speed limit when you do not want to drive over a specific speed.

If you drive over the preset speed limit, the warning system operates (set speed limit will blink and chime will sound) until the vehicle speed returns within the speed limit.

Information

Whilst speed limit control is in operation, the cruise control system cannot be activated.

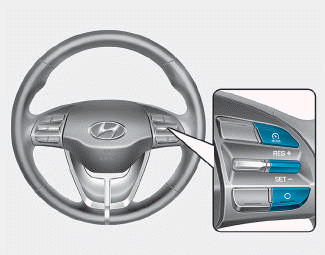

Speed limit control switch

Hyundai i30. Speed limit control system

Hyundai i30. Speed limit control system: Changes mode between cruise control/smart cruise control system and speed limit control system.

Hyundai i30. Speed limit control system

RES+: Resumes or increases speed limit control speed.

SET-: Sets or decreases speed limit control speed.

O: Cancels set speed limit.

To set speed limit

Hyundai i30. Speed limit control system

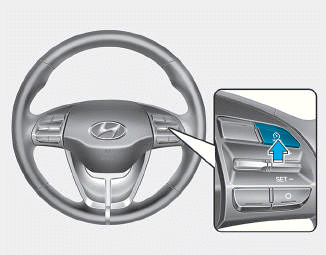

1. Press the Hyundai i30. Speed limit control system button to turn the system on. The speed limit indicator in the instrument cluster will illuminate.

Hyundai i30. Speed limit control system

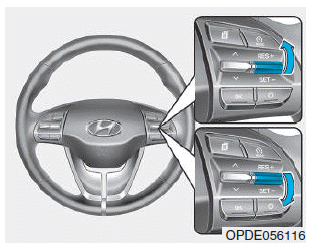

2. Push the toggle switch down (SET-).

3. • Push the toggle switch up (RES+) or down (SET-), and release it at the desired speed.

• Push the toggle switch up (RES+) or down (SET-) and hold it. The speed will increase or decrease by 3 mph (5 km/h).

The set speed limit will display on the instrument cluster.

If you would like to drive over the preset speed limit when you depress the accelerator pedal less than approximately 50%, the vehicle speed will maintain within speed limit.

However if you depress the accelerator pedal more than approximately 70%, you can drive over the speed limit. Then the set speed limit will blink and chime will sound until you return the vehicle speed within the speed limit.

To turn off the speed limit control, do one of the following:

Hyundai i30. Speed limit control system

  • Press the Hyundai i30. Speed limit control system button.
  • If you press O (cancel) button once, the set speed limit will cancel, but it will not turn the system off. If you wish to resume the speed limit, push the +RES or SET- toggle switch on your steering wheel to your desired speed.
