Hyundai i30 (PD): Driving your vehicle / Driver attention warning (DAW) system

The Driver Attention Warning (DAW) system displays the condition of the driver's fatigue level and inattentive driving practices.

System setting and activation

System setting

• The Driver Attention Warning (DAW) system is set to be in the OFF position, when your vehicle is first delivered to you from the factory.
• To turn ON the Driver Attention Warning (DAW) system, turn on the engine, and then select "User Settings → Driver assistance → DAW (Driver Attention Warning) → High sensitivity/Normal sensitivity" on the LCD display.
• The driver can select the Driver Attention Warning (DAW) system mode.
  - High sensitivity : The Driver Attention Warning (DAW) system alerts the driver of his/her fatigue level or inattentive driving practices faster than Normal mode.
  - Normal sensitivity : The Driver Attention Warning (DAW) system alerts the driver of his/her fatigue level or inattentive driving practices.
  - Off : The Driver Attention Warning (DAW) system is deactivated.
• The set-up of the Driver Attention Warning (DAW) system will be maintained, as selected, when the engine is re-started.

Display of the driver's attention level

â–  System off

â–  Attentive driving

â–  Inattentive driving

• The driver can monitor their driving conditions on the LCD display. The DAW screen will appear when you select the ASSIST mode tab () on the LCD display if the system is activated. (For more information, refer to "LCD Display Modes" in chapter 3.)
• The driver's attention level is displayed on the scale of 1 to 5. The lower the number is, the more inattentive the driver is.
• The number decreases when the driver does not take a break for a certain period of time.
• The number increases when the driver attentively drives for a certain period of time.
• When the driver turns on the system whilst driving, it displays ‘Last Break time’ and level.

Take a break

• The "Consider taking a break" message appears on the LCD display and a warning sounds in order to suggest the driver to take a break, when the driver’s attention level is below 1.
• The Driver Attention Warning (DAW) system does not suggest the driver to take a break, when the total driving time is shorter than 10 minutes.

Resetting the system

• The last break time is set to 00:00 and the driver's attention level is set to 5 (very attentive) when the driver resets the Driver Attention Warning (DAW) system.
• The Driver Attention Warning (DAW) system resets the last break time to 00:00 and the driver's attention level to 5 in the following situations.
  - The engine is turned OFF.
  - The driver unfastens the seat belt and then opens the driver's door.
  - The engine has been idled continuously over 10 minutes.
• The Driver Attention Warning (DAW) system operates again, when the driver restarts driving.

System standby

The Driver Attention Warning (DAW) system enters the ready status and displays the 'Standby' screen in the following situations.

- The camera does not detect the lanes.
- Driving speed remains under 37 mph (60 km/h) or over 125 mph (200 km/h).

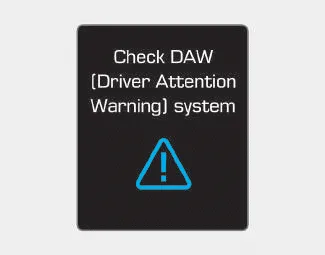

System malfunction

DAW (Driver Attention Warning) system

When the "Check DAW (Driver Attention Warning) system" warning message appears, the system is not working properly. In this case, we recommend that you have the vehicle inspected by a HYUNDAI authorised repairer.

WARNING

• The Driver Attention Warning (DAW) system is not a substitute for safe driving practices, but a convenience function only. It is the responsibility of the driver to always drive cautiously to prevent unexpected and sudden situations from occurring. Pay attention to the road conditions at all times.
• The system may suggest a break according to the driver’s driving pattern or habits even if the driver doesn’t feel fatigue.
• The driver, who feels fatigued, should take a break, even though there is no break suggestion by the Driver Attention Warning (DAW) system.

NOTICE

The Driver Attention Warning (DAW) system utilises the camera sensor on the front windscreen for its operation. To keep the camera sensor in the best condition, you should observe the followings:

• NEVER install any accessories or stickers on the front windscreen, nor tint the front windscreen.
• NEVER locate any reflective objects (i.e. white paper, mirror) over the dashboard. Any light reflection may cause a malfunction of the Driver Attention Warning (DAW) system.
• Pay extreme caution to keep the camera sensor out of water.
• NEVER disassemble the camera assembly, nor apply any impact on the camera assembly.
• Do not disassemble the camera temporarily for tinted window or attaching any types of coatings and accessories.

If you disassemble a camera and assemble it again, we recommend that you take your vehicle to a HYUNDAI authorised repairer and have the system checked for calibration.

CAUTION

The Driver Attention Warning (DAW) system may not properly operate with limited alerting in the following situations:

• The lane detection performance is limited. (For more information, refer to "Lane Keeping Assist (LKA) system" in this chapter.)
• The vehicle is violently driven or is abruptly turned for obstacle avoidance (e.g. construction area, other vehicles, fallen objects, bumpy road).
• Forward drivability of the vehicle is severely undermined (possibly due to wide variation in tyre pressures, uneven tyre wear-out, toein/ toe-out alignment).
• The vehicle drives on a curvy road.
• The vehicle drives through a windy area.
• The vehicle drives on a bumpy road.
• The vehicle is controlled by the following driving assist systems:
  - Lane Keeping Assist (LKA) system
  - Forward Collision-avoidance Assist (FCA) system
  - Smart Cruise Control (SCC) system

CAUTION

Playing the vehicle audio system at high volume may offset the Driver Attention Warning (DAW) system warning sounds.
