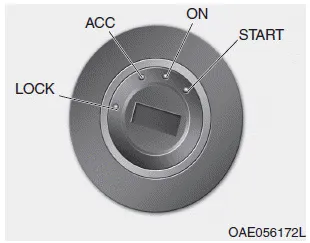

Hyundai i30 (PD): Ignition switch / Key ignition switch. Starting the engine

Whenever the front door is opened, the ignition switch will illuminate, provided the ignition switch is not in the ON position. The light will go off immediately when the ignition switch is turned on or go off after about 30 seconds when the door is closed. (if equipped)

WARNING

• NEVER turn the ignition switch to the LOCK or ACC position whilst the vehicle is in motion except in an emergency. This will result in the engine turning off and loss of power assist for the steering and brake systems. This may lead to loss of directional control and braking function, which could cause an accident.
• Before leaving the driver's seat, always make sure the shift lever is in 1st gear (for manual transmission vehicle) or P (Park, for automatic transmission/dual clutch transmission vehicle) position, apply the parking brake, and turn the ignition switch to the LOCK position. Unexpected vehicle movement may occur if these precautions are not followed.

NOTICE

Never use aftermarket keyhole covers.This may generate start-up failure due to communication failure.

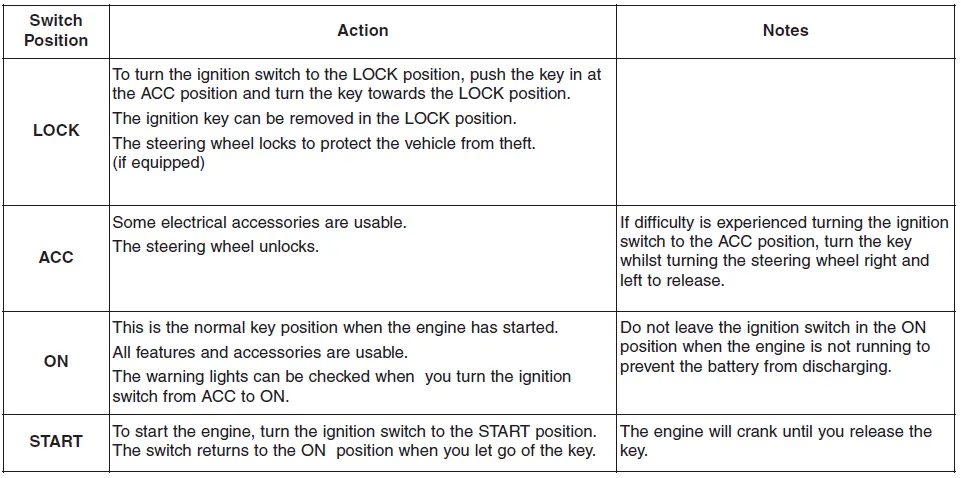

Key ignition switch positions

Starting the engine

WARNING

• Always wear appropriate shoes when operating your vehicle. Unsuitable shoes, such as high heels, ski boots, sandals, flip-flops, etc., may interfere with your ability to use the brake, accelerator and clutch pedals.
• Do not start the vehicle with the accelerator pedal depressed. The vehicle can move which can lead to an accident.
• Wait until the engine rpm is normal. The vehicle may suddenly move if the brake pedal is released when the rpm is high.

Starting the petrol engine

Vehicle with manual transmission:

1. Make sure the parking brake is applied.

2. Make sure the shift lever is in neutral.

3. Depress the clutch and brake pedals.

4. Turn the ignition switch to the START position. Hold the key (maximum of 10 seconds) until the engine starts and release it.

Vehicle with automatic transmission/ dual clutch transmission:

1. Make sure the parking brake is applied.

2. Make sure the shift lever is in P (Park).

3. Depress the brake pedal.

4. Turn the ignition switch to the START position. Hold the key (maximum of 10 seconds) until the engine starts and release it.

Information

• Do not wait for the engine to warm up whilst the vehicle remains stationary. Start driving at moderate engine speeds. (Steep accelerating and decelerating should be avoided.)
• Always start the vehicle with your foot on the brake pedal. Do not depress the accelerator whilst starting the vehicle. Do not race the engine whilst warming it up.

Starting the diesel engine

To start the diesel engine when the engine is cold, it has to be pre-heated and then it has to be warmed up, before starting to drive.

Vehicle with manual transmission:

1. Make sure the parking brake is applied.

2. Make sure the shift lever is in neutral.

3. Depress the clutch and brake pedals.

4. Turn the ignition switch to the ON position to pre-heat the engine. The glow indicator light ( ) will illuminate.

5. When the glow indicator light ( ) goes out, turn the key ignition switch to the START position. Hold the key (maximum of 10 seconds) until the engine starts and release it.

Vehicle with dual clutch transmission:

1. Make sure the parking brake is applied.

2. Make sure the shift lever is in P (Park).

3. Depress the brake pedal.

4. Turn the ignition switch to the ON position to pre-heat the engine. The glow indicator light () will illuminate.

5. When the glow indicator light () goes out, turn the key ignition switch to the START position. Hold the key (maximum of 10 seconds) until the engine starts and release it.

NOTICE

If the engine does not start within 10 seconds after preheating is completed, turn the ignition switch once more to the LOCK position and wait for 10 seconds. Then turn the ignition switch to the ON position in order to preheat the engine again.

Starting and stopping the engine for turbocharger intercooler

1. Do not race or accelerate the engine immediately after starting the engine.

If the engine is cold, idle for several seconds before sufficient lubrication is ensured in the turbocharger.

2. After high speed or extended driving that requires heavy engine load, idle the engine about 1 minute before turning the engine off.

This idle time will allow the turbocharger to cool prior to shutting the engine off.

NOTICE

Do not turn off the engine immediately after it has been subjected to a heavy load. Doing so may cause severe damage to the engine or turbocharger.

NOTICE

To prevent damage to the vehicle:

• Do not hold the ignition key in the START position for more than 10 seconds. Wait 5 to 10 seconds before trying again.
• Do not turn the ignition switch to the START position with the engine running. It may damage the starter.
• If traffic and road conditions permit, you may put the shift lever in the N (Neutral) position whilst the vehicle is still moving and turn the ignition switch to the START position in an attempt to restart the engine.
• Do not push or tow your vehicle to start the engine.
