Hyundai i30 (PD): Light bulbs / Headlamp, static bending lamp, position lamp, turn signal lamp and daytime running light bulb replacement

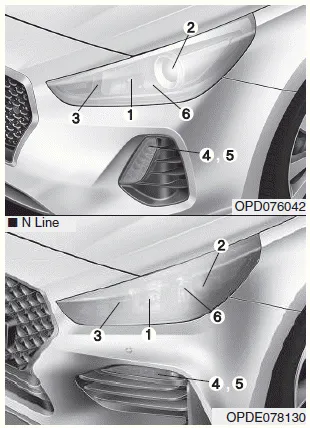

Type A

Type B

(1) Headlamp (High)
(2) Headlamp (Low)
(3) Turn signal lamp
(4) Daytime running light (if equipped)
(5) Position lamp
(6) Static bending light

WARNING

• Handle halogen bulbs with care. Halogen bulbs contain pressurized gas that will produce flying pieces of glass that could cause injuries if broken.
• Wear eye protection when changing a bulb. Allow the bulb to cool down before handling it.

• Always handle them carefully, and avoid scratches and abrasions. If the bulbs are lit, avoid contact with liquids.

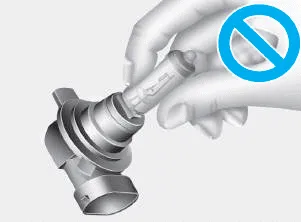

• Never touch the glass with bare hands. Residual oil may cause the bulb to overheat and burst when lit.
• A bulb should be operated only when installed in a headlamp.
• If a bulb becomes damaged or cracked, replace it immediately and carefully dispose of it.

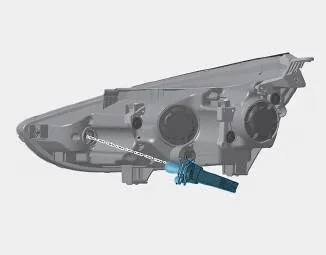

Headlamp, position lamp (Type A) and static bending light

1. Open the bonnet.

2. Disconnect the negative battery cable.

3. Remove the bulb cover by turning it counterclockwise.

4. Disconnect the bulb socket-connector. (for low beam and high beam)

5. Remove the bulb from the headlamp assembly.

6. Install a new bulb.

7. Connect the bulb socket-connector. (for low beam and high beam)

8. Install the bulb cover by turning it clockwise.

Turn signal lamp

1. Open the bonnet.

2. Disconnect the negative battery cable.

3.Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

4.Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

5.Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

6.Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly.

7.Push the socket into the assembly and turn the socket clockwise.

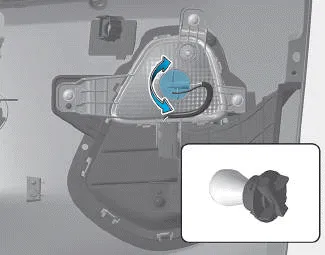

Daytime running light (Type A)

1. Loosen the pin-type retainers of the under cover and then remove the undercover.

2. Reach your hand into the back of the front bumper.

3. Remove the socket from the housing by turning the socket counterclockwise until the tabs on the socket align with the slots of the housing.

4. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

5. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

6. Install the socket into the housing by aligning the tabs on the socket with the slots in the housing. Push the socket into the housing and turn the socket clockwise.

Type B - Position lamp and daytime running light

If the LED lamp does not operate, we recommend that you have the vehicle checked by a HYUNDAI authorised repairer.

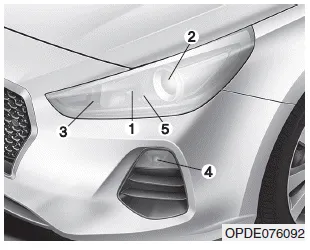

Type C

Type D (Fastback)

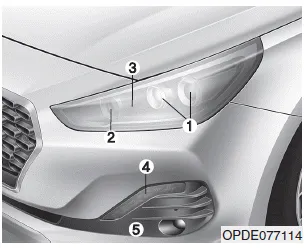

(1) Headlamp (Low)
(2) Headlamp (High)
(3) Static bending light
(4) Position lamp & Turn signal lamp & Daytime running light
(5) Front fog lamp

Headlamp, static bending light, position lamp, turn signal lamp and daytime running light

If the LED lamp does not operate, we recommend that you have the vehicle checked by a HYUNDAI authorised repairer.

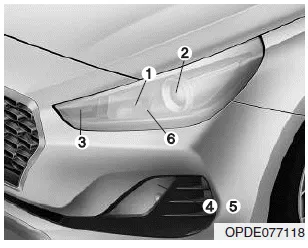

Type E (Fastback)

Type F (Fastback)

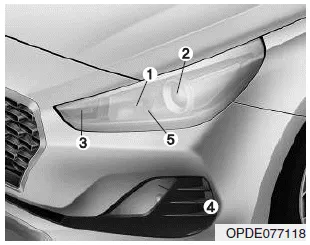

(1) Headlamp (High)
(2) Headlamp (Low)
(3) Turn signal lamp
(4) Daytime running light
(5) Position lamp
(6) Static bending light

WARNING

• Handle halogen bulbs with care. Halogen bulbs contain pressurized gas that will produce flying pieces of glass that could cause injuries if broken.
• Wear eye protection when changing a bulb. Allow the bulb to cool down before handling it.
• Always handle them carefully, and avoid scratches and abrasions. If the bulbs are lit, avoid contact with liquids.
• Never touch the glass with bare hands. Residual oil may cause the bulb to overheat and burst when lit.
• A bulb should be operated only when installed in a headlamp.
• If a bulb becomes damaged or cracked, replace it immediately and carefully dispose of it.

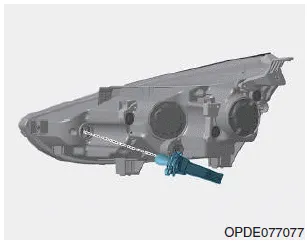

Headlamp, position lamp (Type E) and static bending light

1. Open the bonnet.

2. Disconnect the negative battery cable.

3. Remove the bulb cover by turning it counterclockwise.

4. Disconnect the bulb socket-connector.

5. Remove the bulb from the headlamp assembly.

6. Install a new bulb.

7. Connect the bulb socket-connector.

8. Install the bulb cover by turning it clockwise.

Turn signal lamp

1. Open the bonnet.

2. Disconnect the negative battery cable.

3.Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

4.Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

5.Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

6.Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly.

7.Push the socket into the assembly and turn the socket clockwise.

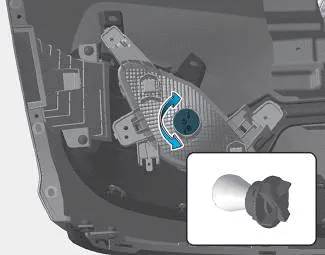

Daytime running light (Type E)

1. Loosen the pin-type retainers of the under cover and then remove the undercover.

2. Reach your hand into the back of the front bumper.

3. Remove the socket from the housing by turning the socket counterclockwise until the tabs on the socket align with the slots of the housing.

4. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

5. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

6. Install the socket into the housing by aligning the tabs on the socket with the slots in the housing. Push the socket into the housing and turn the socket clockwise.

Type F - Position lamp and daytime running light

If the LED lamp does not operate, we recommend that you have the vehicle checked by a HYUNDAI authorised repairer.
