Hyundai i30 (PD): Light bulbs / License plate light bulb replacement

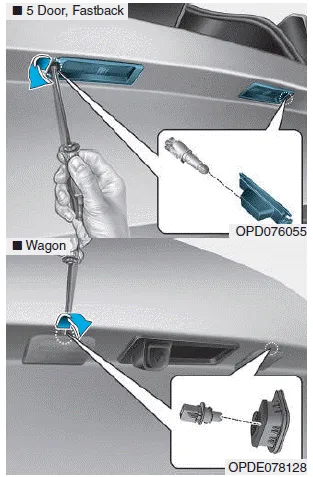

1. Using a flat-blade screwdriver, gently pry the lens cover from the lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb.
4. Reinstall in the reverse order.
NOTICE
Be careful not to damage the cover, tab, and plastic housing.
If the high mounted stop lamp does not operate, we recommend that you contact a HYUNDAI authorised repairer.
Room lamp If the LED lamp does not operate, we recommend that you have the vehicle checked by a HYUNDAI authorised repairer. Map lamp, room lamp, vanity mirror lamp and luggage compartment lamp 1.
