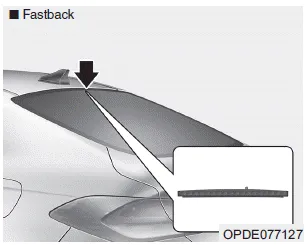

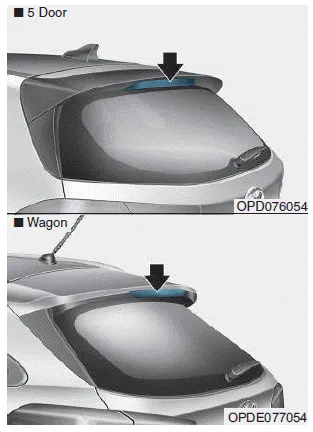

Hyundai i30 (PD): Light bulbs / High mounted stop lamp replacement
If the high mounted stop lamp does not operate, we recommend that you contact a HYUNDAI authorised repairer.
1. Loosen the pin-type retainers and screws of the rear wheel guard and then detach it from the rear bumper. 2. Reach your hand into the back of the rear bumper.
1. Using a flat-blade screwdriver, gently pry the lens cover from the lamp housing. 2. Remove the bulb by pulling it straight out. 3. Install a new bulb.
