Hyundai i30. Mounting bracket for roof carrier

To install or remove a roof carrier, you can use the mounting bracket and cover on the roof.

When you install a roof carrier, use the following procedure.

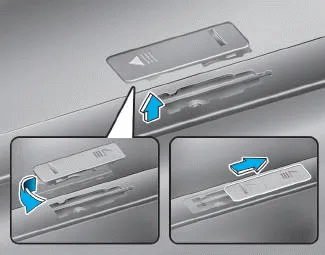

1. Insert a slim tool(coin or flat blade driver) into the slot and slide the cover toward the arrow on the cover.

Hyundai i30. Mounting bracket for roof carrier

2. Rotate the cover half way and insert the cover on the roof hole as the illustration.

3. After using the roof carrier, install the cover back on the roof in the reverse order.

Information

If the vehicle is equipped with a sunroof, be sure not to position cargo onto the roof in such a way that it could interfere with sunroof operation.

NOTICE

  • When carrying cargo on the roof, take the necessary precautions to make sure the cargo does not damage the roof of the vehicle.
  • When carrying large objects on the roof, make sure they do not exceed the overall roof length or width.
