Hyundai i30 (PD): Interior features / Luggage rail system (wagon)

The luggage rail system may help prevent the luggage from rolling around in the luggage compartment.

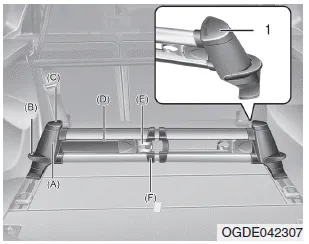

Build in segmentation bar

• Put both pillars (A) of the segmentation bar on the rail openings.
• To move the segmentation bar, push the lever (B).
• Make sure the pillars click into place.
• To release the belt, turn the upper side of the pillar (C) to the left or right until it clicks.
• Pull the belt (D) and put it around the luggage and fasten the hook to the centre of the segmentation bar (F) to secure the luggage.
• You can secure the bulky luggage by engaging the both hooks together.
• To make sure that the belt is securely fixed, put the upper side of the pillar (C) to lock position (1).

CAUTION

• When mounting or removing the segmentation bar, you need to move both pillars together at the same time.
• Max. load: 30 kg with one belt 40 kg with two belts

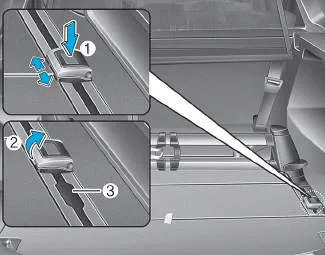

Using the shackle

• Put the shackle (A) on the rail, on the position where the shackle is supposed to be placed.
• To move the shackle, press the button (1) and move the shackle along the rail.
• Make sure the shackle is clicked into place.
• To fix the luggage, pull up the hook (2) in the middle cargo bay.
• Now you can mount e.g. belt to fix the luggage in the hook.
• You cannot use the shackle when the shackle is in the rail groove (3).

CAUTION

Tensile force : max. 30 kgf. for 1 shackle
