Exterior overview

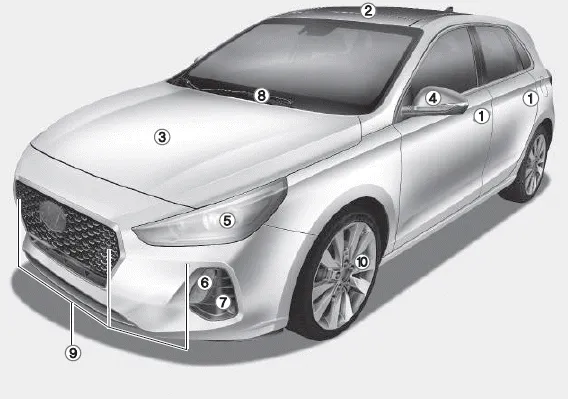

■ Front view • 5 Door, Wagon

1. Door locks
2. Panorama sunroof
3. Bonnet
4. Outside rearview mirror
5. Head lamp
6. Daytime Running Light (DRL)
7. Front fog lamp
8. Front windscreen wiper blades
9. Parking Distance Warning system (Reverse/Forward)
10. Tyres and wheels

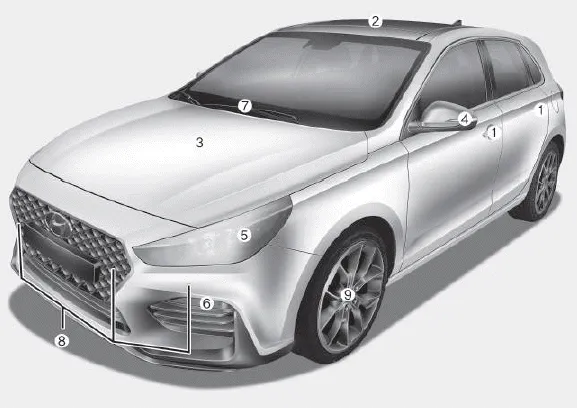

■ Front view • 5 Door (N line)

1. Door locks
2. Panorama sunroof
3. Bonnet
4. Outside rearview mirror
5. Head lamp
6. Daytime Running Light (DRL)
7. Front windscreen wiper blades
8. Parking Distance Warning system (Reverse/Forward)
9. Tyres and wheels

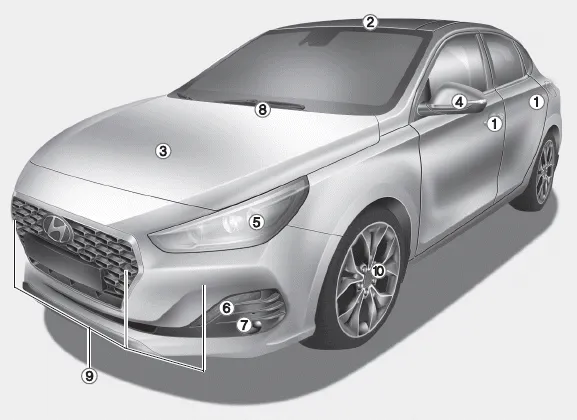

■ Front view • Fastback

1. Door locks
2. Panorama sunroof
3. Bonnet
4. Outside rearview mirror
5. Head lamp
6. Daytime Running Light (DRL)
7. Front fog lamp
8. Front windscreen wiper blades
9. Parking Distance Warning system (Reverse/Forward)
10. Tyres and wheels

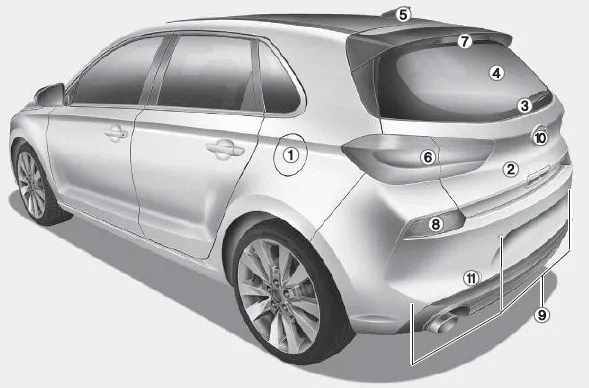

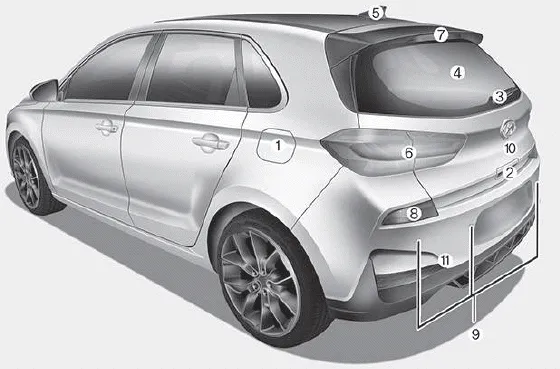

■ Rear view • 5 Door, Wagon

1. Fuel filler door
2. Tailgate
3. Rear window wiper blade
4. Defroster
5. Antenna
6. Rear combination lamp
7. High mounted stop lamp
8. Rear fog lamp
9. Parking Distance Warning system (Reverse)
10. Rear View Monitor
11. Towing hook

■ Rear view • 5 Door (N Line)

1. Fuel filler door
2. Tailgate
3. Rear window wiper blade
4. Defroster
5. Antenna
6. Rear combination lamp
7. High mounted stop lamp
8. Rear fog lamp
9. Parking Distance Warning system (Reverse)
10. Rear View Monitor
11. Towing hook

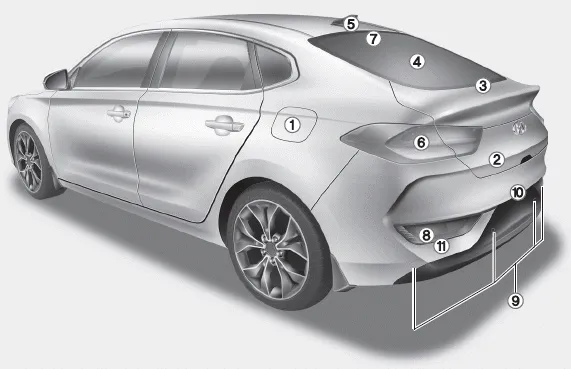

■ Rear view • Fastback

1. Fuel filler door
2. Tailgate
3. Rear window wiper blade
4. Defroster
5. Antenna
6. Rear combination lamp
7. High mounted stop lamp
8. Rear fog lamp
9. Parking Distance Warning system (Reverse)
10. Rear View Monitor
11. Towing hook

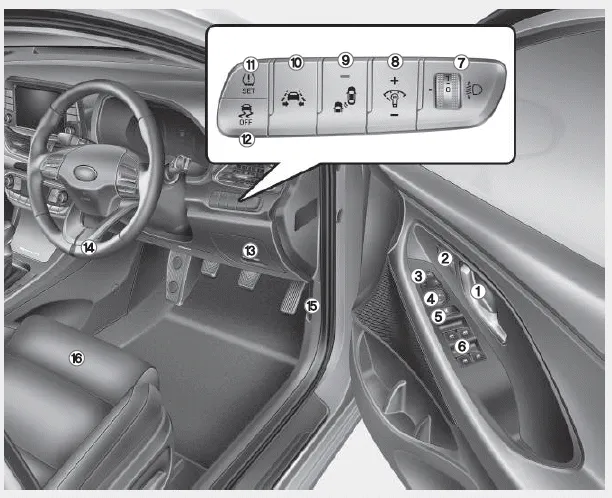

Interior overview

1. Inside door handle
2. Driver position memory system
3. Outside rearview mirror folding
4. Outside rearview mirror control
5. Power window lock switch
6. Power window switches
7. Headlight levelling device
8. Instrument panel illumination control switch
9. Blind-spot Collision Warning (BCW)
10. Lane keeping assist (LKA) system/Lane departure warning (LDW) system
11. TPMS SET button
12. ESC OFF button
13. Fuse box
14. Steering wheel
15. Bonnet release lever
16. Seat

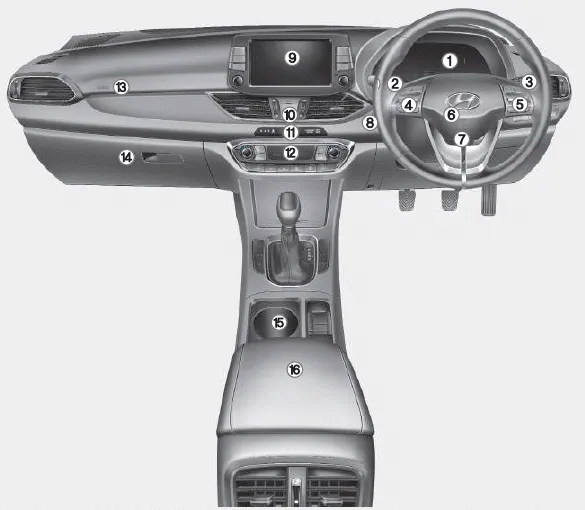

Instrument panel overview

1. Instrument cluster
2. Light control/Turn signals
3. Wiper/Washer
4. Steering wheel audio controls/Bluetooth® wireless technology hands-free controls
5. Speed limiter controls/Cruise controls/Smart cruise controls
6. Horn
7. Driver’s front air bag
8. Key ignition switch/Engine Start/Stop button
9. Audio system/Navigation system
10. Hazard warning flasher switch
11. Central door lock switch
12. Manual climate control system/Automatic climate control system
13. Passenger’s front air bag
14. Glove box
15. Cup holder
16. Console box

1. Power outlet
2. Aux, USB and iPod®
3. Wireless mobile phone charging system
4. Electronic parking brake (EPB) switch
5. Auto Hold
6. Seat warmer/Air ventilation seat
7. Heated steering wheel
8. Drive mode button
9. Parking Distance Warning (Reverse/Forward) button/Parking Distance Warning (Reverse) OFF button
10. Idle stop and go (ISG) OFF button
11. Manual transmission shift lever
12. Automatic transmission shift lever/Dual clutch transmission shift lever

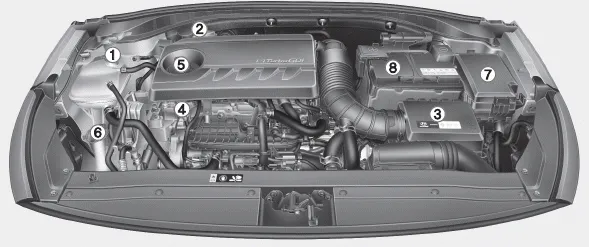

Engine compartment

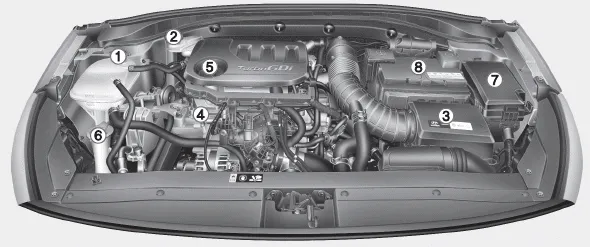

â–  Petrol Engine (Kappa 1.0 T-GDI)

â–  Petrol Engine (Kappa 1.4 T-GDI)

1. Engine coolant reservoir/Engine coolant cap
2. Brake/clutch fluid reservoir
3. Air cleaner
4. Engine oil dipstick
5. Engine oil filler cap
6. Windscreen washer fluid reservoir
7. Fuse box
8. Battery

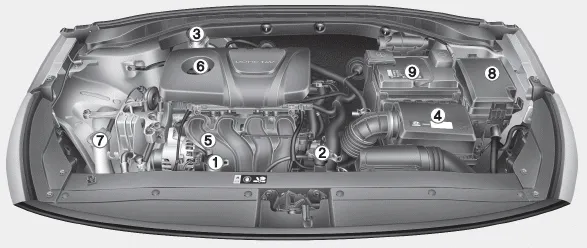

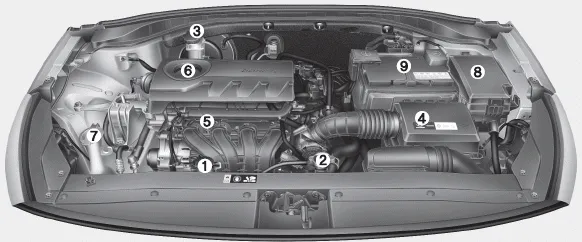

â–  Petrol Engine (Kappa 1.4 MPI)

â–  Petrol Engine (Gamma 1.6 MPI)

1. Engine coolant reservoir
2. Radiator cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windscreen washer fluid reservoir
8. Fuse box
9. Battery

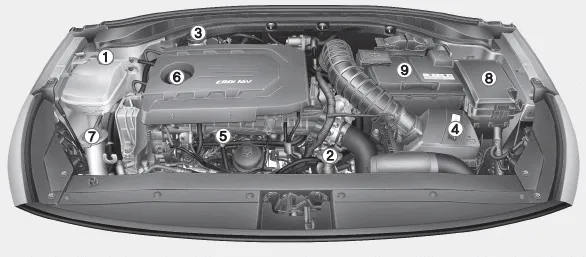

â–  Diesel Engine (U2 1.6 TCI)

1. Engine coolant reservoir
2. Radiator cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windscreen washer fluid reservoir
8. Fuse box
9. Battery

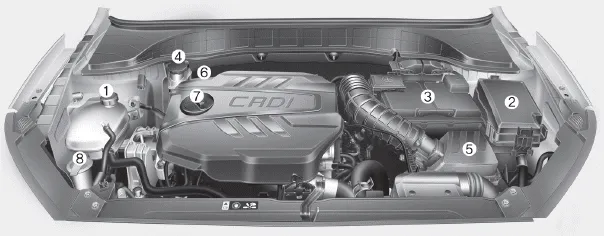

â–  Diesel Engine (Smartstream D1.6 T-GDI)

1. Engine coolant reservoir/Engine coolant cap
2. Fuse box
3. Battery
4. Brake/clutch fluid reservoir
5. Air cleaner
6. Engine oil dipstick
7. Engine oil filler cap
8. Windscreen washer fluid reservoir
