Hyundai i-30: Driveshaft Assembly / BJ Boot

Hyundai i30 (PD) 2018-2024 Service Manual / Driveshaft and axle / Driveshaft Assembly / BJ Boot

Components and components location

Components

Driver driveshaft

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot

5. Shaft
6. TJ boot band
7. TJ boot
8. Spider assembly

9. Snap ring
10. TJ housing
11. Circlip

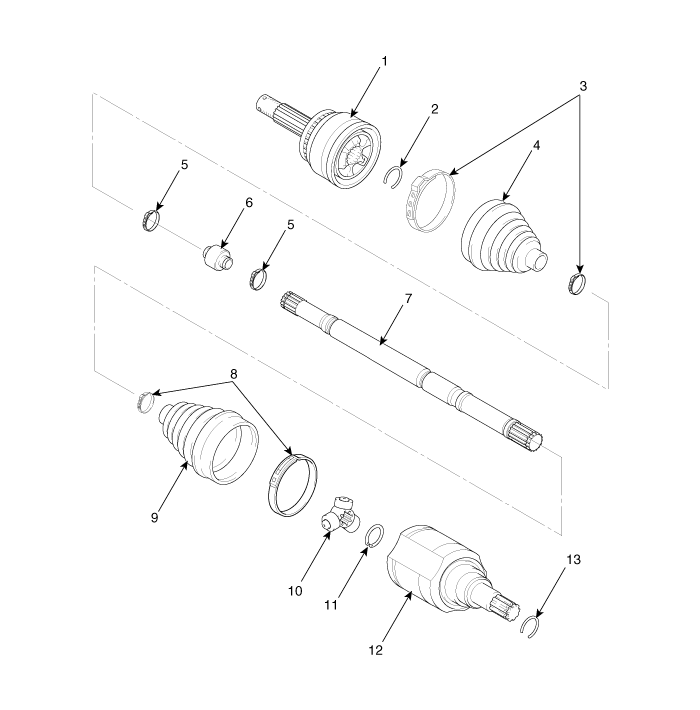

Components

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band

6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot

10. Spider assembly
11. Snap ring
12. TJ housing
13. Circlip

Repair procedures

Removal

1.	Remove the front driveshaft. (Refer to Driveshaft Assembly - "Front Driveshaft")

2.	Remove the TJ joint assembly. (Refer to Driveshaft Assembly - "TJ Joint")

3.	Remove the Dynamic damper. (Refer to Driveshaft Assembly - "Dynamic Damper")

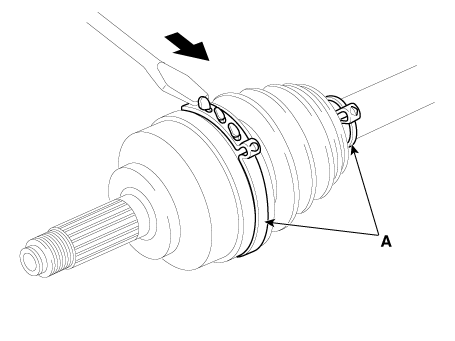

4.	Using a plier or flat-tipped (-) screwdriver, remove the BJ boot bands (A).

5.	Remove the BJ boot.

Install in the reverse order of removal.

•	Do not disassemble the BJ assembly.

•	Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.

•	The boot band should be replaced with a new one.

7.	Check the front alignment. (Refer to Suspension System - "Front Alignment")

Installation

1.	To install, reverse the removal procedure.

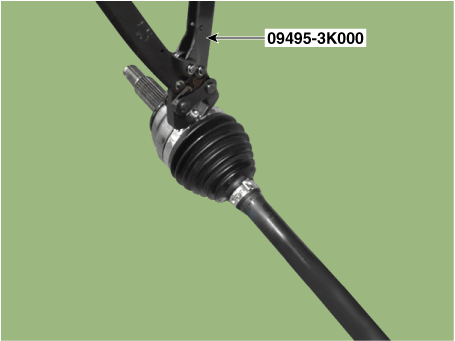

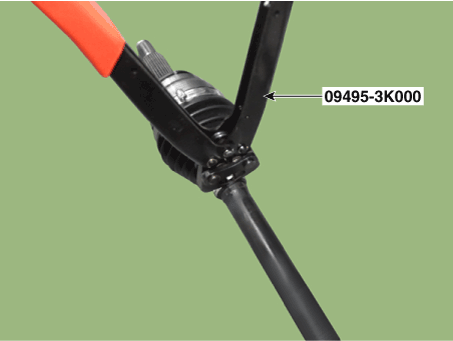

Using the SST (09495-3K000), secure the BJ boot bands.

•	Do not reuse the boot band.

3.	Install the TJ joint assembly. (Refer to Driveshaft Assembly - "TJ Joint")

4.	Install the front driveshaft. (Refer to Driveshaft Assembly - "Front Driveshaft")

5.	Check the front alignment. (Refer to Suspension System - "Front Alignment")
