Hyundai i-30: Driveshaft Assembly / Dynamic Damper

Hyundai i30 (PD) 2018-2024 Service Manual / Driveshaft and axle / Driveshaft Assembly / Dynamic Damper

Components and components location

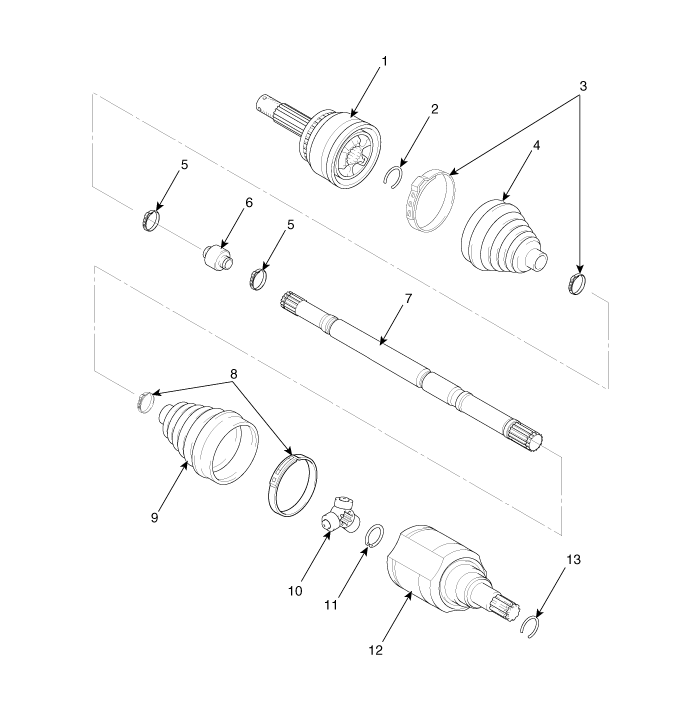

Components

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot

10. Spider assembly
11. Snap ring
12. TJ housing
13. Circlip

Repair procedures
Removal
1.
Remove the front driveshaft.
(Refer to Driveshaft Assembly - "Front Driveshaft")
2.
Remove the TJ joint assembly.
(Refer to Driveshaft Assembly - "TJ Joint")
3.

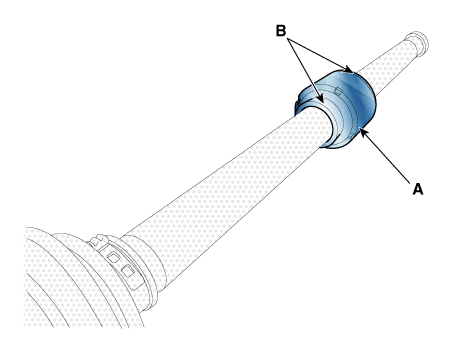

Remove the remove the both side of band (B) of the dynamic damper (A).

4.

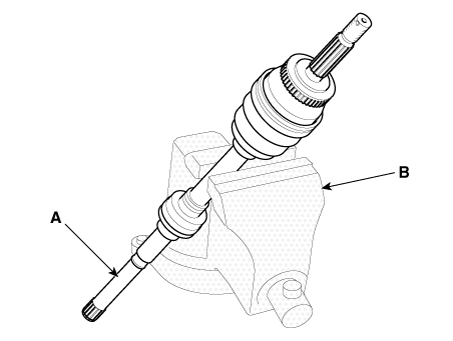

Fix the driveshaft (A) with a vice (B) as illustrated.

5.
Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper when the dynamic damper is removed.
6.

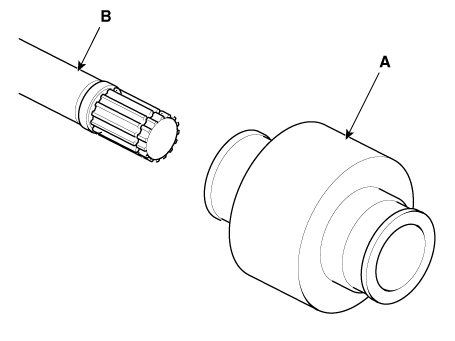

Seperate the dynamic damper (A) from the shaft (B) carefully.

Installation
1.
Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper.
2.
Install the dynamic damper.
3.
Install the dynamic damper band.
4.

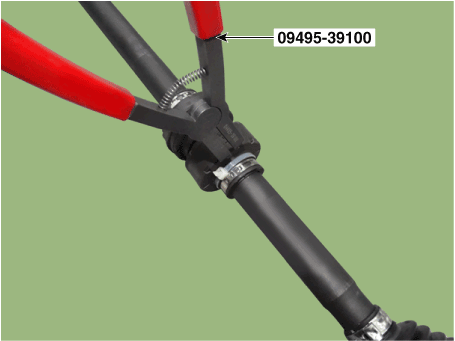

Using the SST (09495-39100), secure the TJ boot bands.


Do not reuse the boot band.
5.
Install the TJ joint assembly.
(Refer to Driveshaft Assembly - "TJ Joint")
6.
Install the front driveshaft.
(Refer to Driveshaft Assembly - "Front Driveshaft")
7.
Check the front alignment.
(Refer to Suspension System - "Front Alignment")
