Hyundai i-30: Keyless Entry And Burglar Alarm / Components and components location

Hyundai i30 (PD) 2018-2025 Service Manual / Body Electrical System / Keyless Entry And Burglar Alarm / Components and components location

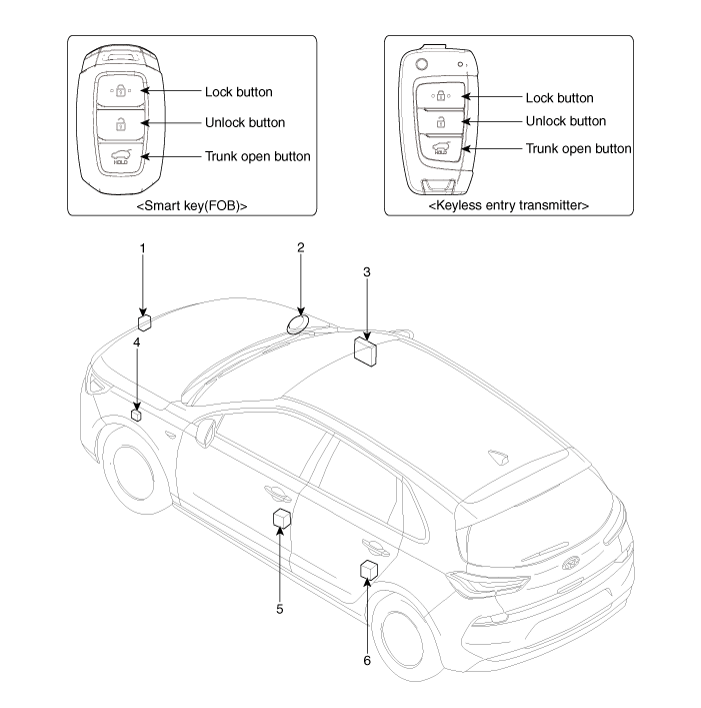

Component Location

1. Hood switch
2. Burglar horn
3. BCM
4. Door lock / unlock buzzer
5. Front door actuator & swicth
6. Rear door actuator & swicth

    Specifications

    Specification Item Specification Power source 3V Operating temperature -30°C to +75°C (-22°F to +167°F) RF Modulation FSK LF Modulation ASK RF frequency 433...

    Description and operation

    Description Burglar Alarm State [B/A State] B/A State Description DISARM 1) This is the state when "ARM" mode is off...
