Hyundai i-30: Electronic Parking Brake (EPB) / EPB malfunction indicator

Hyundai i30 (PD) 2018-2024 Owner's Manual / Driving your vehicle / Braking system / Electronic Parking Brake (EPB) / EPB malfunction indicator

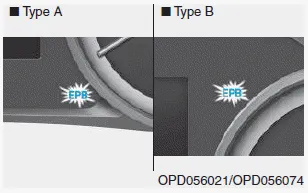

Hyundai i30. EPB malfunction indicator

This warning light illuminates if the Engine Start/Stop button is changed to the ON position and goes off in approximately 3 seconds if the system is operating normally.

If the EPB malfunction indicator remains on, comes on whilst driving, or does not come on when the Engine Start/Stop button is changed to the ON position, this indicates that the EPB may have malfunctioned.

If this occurs, we recommend that the system be checked by a HYUNDAI authorised repairer.

The EPB malfunction indicator may illuminate when the ESC indicator comes on to indicate that the ESC is not working properly, but it does not indicate a malfunction of the EPB.

NOTICE

  • If the EPB warning light is still on, we recommend that the system be checked by a HYUNDAI authorised repairer.
  • If the parking brake warning light does not illuminate or blinks even though the EPB switch was pulled up, the EPB may not be applied.
  • If the parking brake warning light blinks when the EPB warning light is on, press the switch, and then pull it up. Repeat this one more time. If the EPB warning does not go off, we recommend that the system be checked by a HYUNDAI authorised repairer.

    Warning messages

    To release EPB, fasten seatbelt, close door, bonnet and tailgate If you try to drive with the EPB applied, a warning will sound and a message will appear...

    Emergency braking

    If there is a problem with the brake pedal whilst driving, emergency braking is possible by pulling up and holding the EPB switch. Braking is possible only whilst you are holding the EPB switch...
