Hyundai i-30: Wireless Power Charger System / Components and positions

Hyundai i30 (PD) 2018-2025 Service Manual / Body Electrical System / Wireless Power Charger System / Components and positions

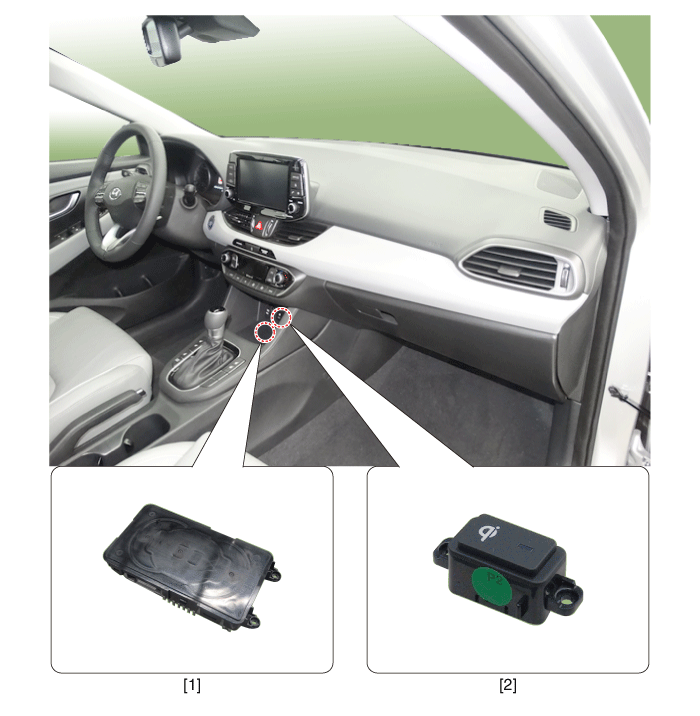

Components

1. Wireless power charging unit
2. Wireless power charging lamp

    Specification

    Specifications Item Specification Rated voltage DC 13.5 V Operating voltage DC 8...

    Description and operating principle

    Description and Operation Wireless Power Charger System During ACC or IG ON, battery voltage is supplied to the wireless power charger system to transmit an output of 5 W to mobile phone...
