Repair procedures
Inspection
1.
Remove the left luggage side trim.
(Refer to Body - "Luggage Side Trim")
2.
Remove the subwoofer. (Subwoofer type)
(Refer to AVN System - "Speakers")
Remove the rear heater unit. (Rear heater type)
(Refer to Heating,Ventilation, Air Conditioning - "Rear Heater Unit")
3.
Remove the fuel filler housing after opening the fuel filler door.
(Refer to Body - "Fuel Filler Door")
4.

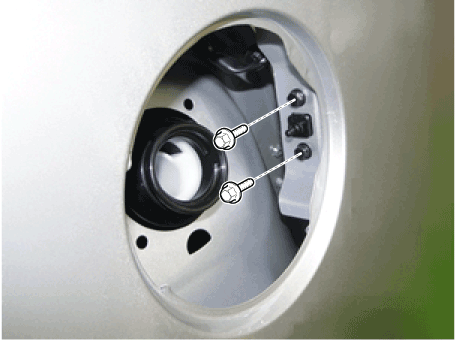

Loosen the fuel filler actuator mounting bolts (2EA).

5.

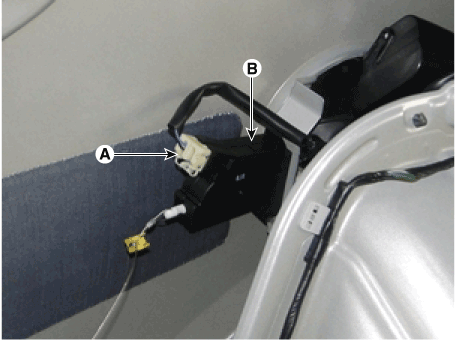

Remove the fuel filler door release actuator (A) after disconnecting the fuel filler door release actuator connector (A).

6.

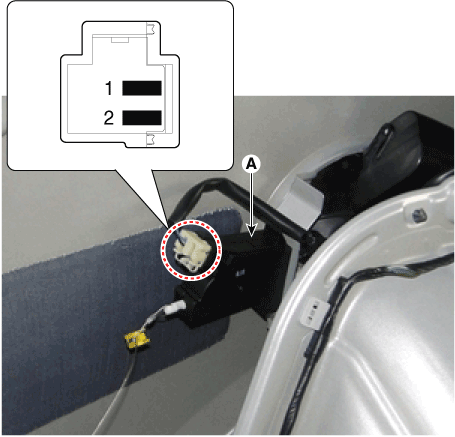

Check for continuity between terminal No. 1 and No. 2. If there is no continuity, replace the fuel filler door release actuator (A).

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the left luggage side trim.
(Refer to Body - "Luggage Side Trim")
3.

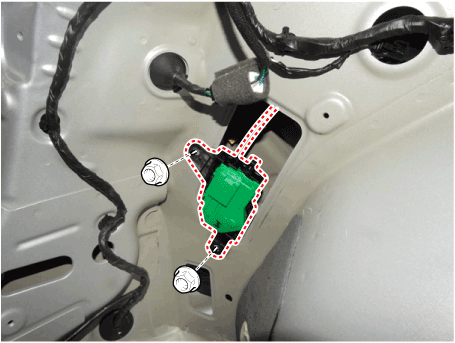

Loosen the fuel filler actuator mounting bolts.

4.

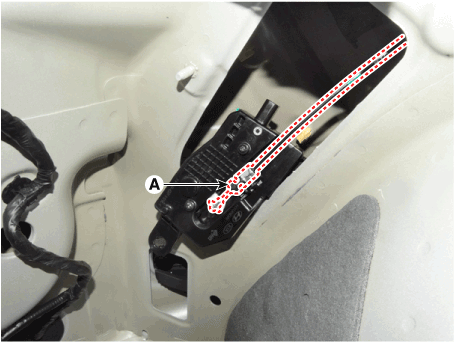

Remove the fuel filler actuator cable (A).

Installation
1.
Install the fuel filler actuator cable.
2.
Install the fuel filler actuator.
3.
Connect the negative (-) battery terminal.
