Hyundai i-30: Lighting / Interior lights

Hyundai i30 (PD) 2018-2025 Owner's Manual / Convenient features of your vehicle / Lighting / Interior lights

NOTICE

Do not use the interior lights for extended periods when the engine is turned off otherwise the battery will discharge.

WARNING

Do not use the interior lights when driving in the dark.The interior lights may obscure your view and cause an accident.

Interior lamp AUTO cut

The interior lamps will automatically go off approximately 20 minutes after the engine is turned off and the doors are closed. If a door is opened, the lamp will go off 40 minutes after the engine is turned off. If the doors are locked and the vehicle enters the armed stage of the theft alarm system, the lamps will go off five seconds later.

Welcome system

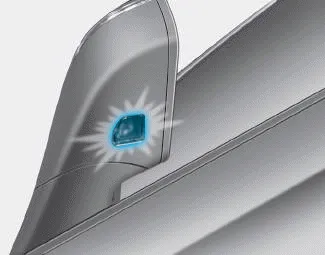

Welcome light Puddle lamp When all the doors (and tailgate) are closed and locked, the puddle lamp will come on for about 15 seconds if any of the below is performed...

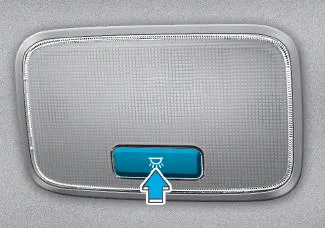

Front & Rear lamps

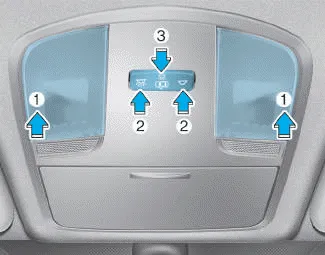

Front lamps (1) Front Map Lamp (2) Front Room Lamp (3) Front Door Lamp Front map lamp Press the map lamp lens (1) to turn ON the map lamp. Re-press the map lamp lens to turn OFF the map lamp...
