Description and operation
Description
The Knee Airbag (KAB) is installed inside the crash pad lower panel and protects the driver in the event of a frontal crash. The SRSCM determines if and when to deploy the KAB.

Never attempt to measure the circuit resistance of the airbag module (squib) even if you are using a specified tester. If the circuit resistance is measured with a tester, accidental airbag deployment will result in serious personal injury.
Components and components location
Component Location

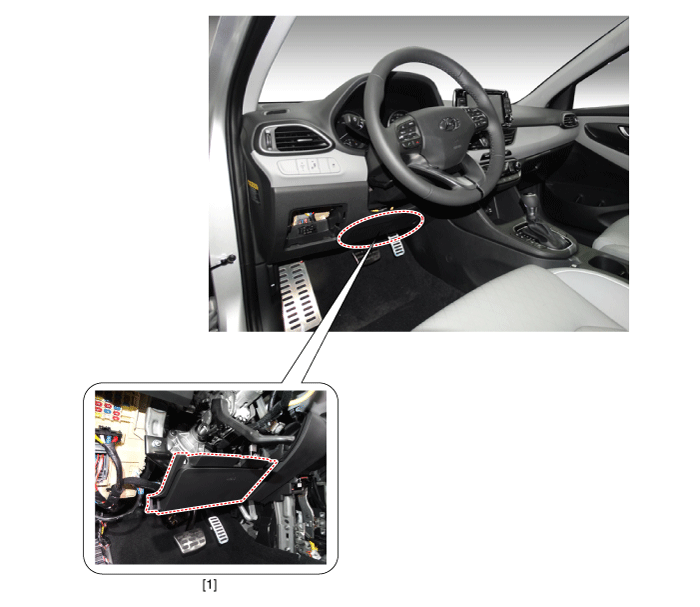

1. Knee airbag (KAB)


Repair procedures
Removal
1.
Disconnect the negative battery terminal.

After disconnecting the cables, wait at least 3 minutes.
2.
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
3.

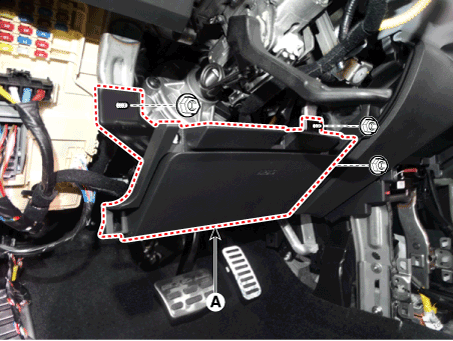

Loosen the mounting nuts, remove the knee air bag (A).

4.

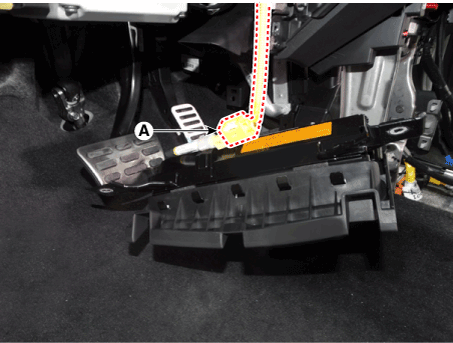

Disconnect the knee airbag connector (A).

Installation
1.
Disconnect the negative battery terminal.

After disconnecting the cables, wait at least 3 minutes.
2.
Install the knee air bag.
Tightning torque
Nuts : 7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)
3.
Install the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
4.
Reconnect the battery negative cable.
5.
After installing the knee air bag (KAB), confirm proper system operation:

Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.

    Airbag Module Disposal

    Description and operation Airbag Disposal When you scrap a vehicle equipped with an airbag, you must deploy it first. When you deploy an airbag, you need to have a skilled mechanic do the work...

    Seat Belt Pretensioner

    ..
