Hyundai i-30: Windscreen defrosting and defogging / Manual climate control system

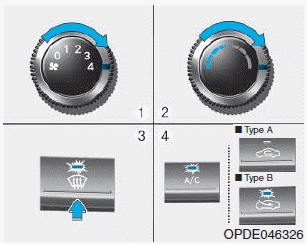

To defog inside windscreen
1. Select any fan speed except “0” position.
2. Select the desired temperature.
3. Select the
or
position.
4. The outside (fresh) air will be selected
automatically. Additionally, the air
conditioning (if equipped) will automatically
operate if the mode is
selected to the
position.
If the air conditioning and outside (fresh) air position are not selected automatically, press the corresponding button manually.
To defrost outside windscreen
1. Set the fan speed to the highest (extreme right) position.
2. Set the temperature to the extreme hot position.
3. Select the
position.
4. The outside (fresh) air and air conditioning (if equipped) will be selected automatically.
Windscreen defrosting and defogging
WARNING
Windscreen heating
Do not use the or
position
during cooling operation in
extremely humid weather. The
difference between the temperature
of the outside air and that
of the windscreen could cause
the outer surface of the windscreen
to fog up, causing loss
of visibility...
Automatic climate control
system
To defog inside windscreen
1. Select the desired fan speed.
2. Select the desired temperature.
3. Press the defroster button ().
4. The air-conditioning will turn on
according to the detected ambient
temperature, outside (fresh) air
position and higher fan speed will
be selected automatically...
