Hyundai i-30: Convenient features of your vehicle / Door locks

Hyundai i30 (PD) 2018-2021 Owner's Manual / Convenient features of your vehicle / Door locks

Operating door locks from outside the vehicle

Mechanical key

Hyundai i30. Door locks

Turn the key toward the rear of the vehicle to unlock and toward the front of the vehicle to lock.

If you lock/unlock the driver's door with a key, a driver’s door will lock/unlock automatically.

Once the doors are unlocked, they may be opened by pulling the door handle.

When closing the door, push the door by hand. Make sure that doors are closed securely.

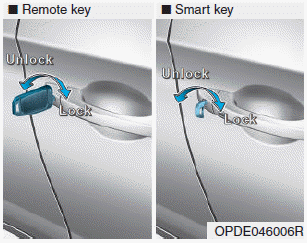

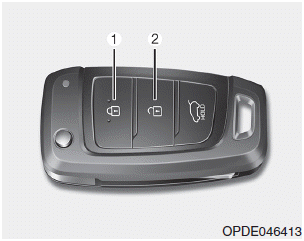

Remote key

Hyundai i30. Door locks

To lock the doors, press the Door Lock button (1) on the remote key.

To unlock the doors, press the Door Unlock button (2) on the remote key.

Once the doors are unlocked, they may be opened by pulling the door handle.

When closing the door, push the door by hand. Make sure that doors are closed securely.

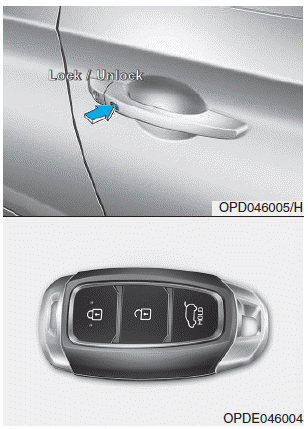

Smart key

Hyundai i30. Door locks

To lock the doors, press the button on the outside door handle whilst carrying the smart key with you or press the door lock button on the smart key.

To unlock the doors, press the button on the outside door handle whilst carrying the smart key with you or press the door unlock button on the smart key.

Once the doors are unlocked, they may be opened by pulling the door handle.

When closing the door, push the door by hand. Make sure that doors are closed securely.

Information

  • In cold and wet climates, door lock and door mechanisms may not work properly due to freezing conditions.
  • If the door is locked/unlocked multiple times in rapid succession with either the vehicle key or door lock switch, the system may stop operating temporarily in order to protect the circuit and prevent damage to system components.

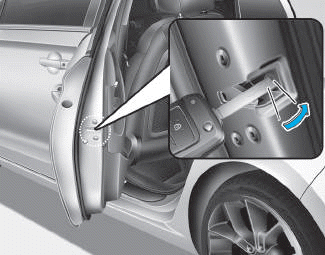

In case of an emergency

Hyundai i30. Door locks

If the electrical power door lock switch is not operating (ex. dead car battery) the only way to lock the door(s) is with the mechanical key from the outside key hole.

Doors without an outside key hole can be locked as follows:

1. Open the door.

2. Insert the key into the emergency door lock hole and turn the key horizontally to lock.

3. Close the door securely.

Information

If the electrical power to door lock switch is not operating (ex. dead car battery) and the tailgate is closed, you will not be able to open the tailgate until power is restored.

Immobiliser system

The immobiliser system protects your vehicle from theft. If an improperly coded key (or other device) is used, the engine’s fuel system is disabled...

Operating door locks from inside the vehicle

With the door handle Front door If the inner door handle is pulled when the door is locked, the door will unlock and open. Rear door If the inner door handle is pulled once when the door is locked, the door will unlock...
