Hyundai i-30: Interior Trim / Rear Wheel House Trim

Hyundai i30 (PD) 2018-2024 Service Manual / Body (Interior and Exterior) / Interior Trim / Rear Wheel House Trim

Repair procedures
Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the rear seat assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.

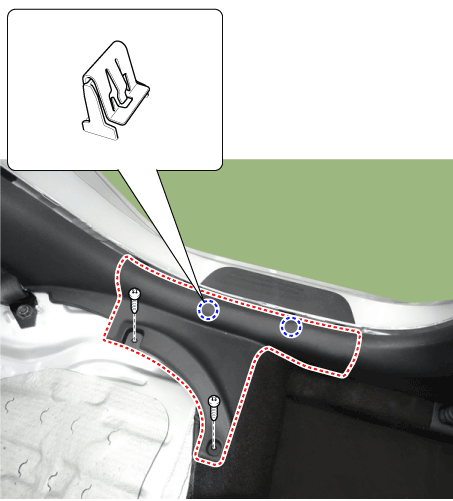

After loosening the mounting screws, remove the rear door scuff trim (A).
3.

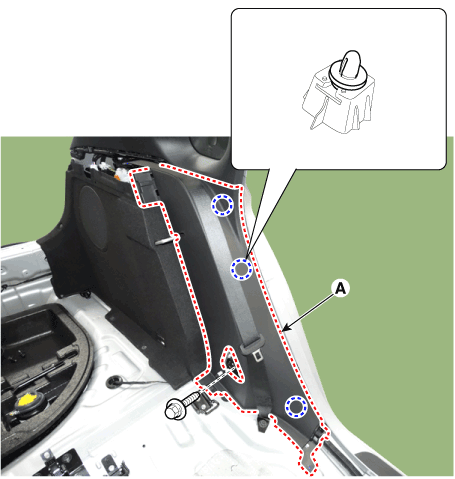

Using a screwdriver or remover, remove the rear wheel house trim (A).
4.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).
