Hyundai i-30: Steering wheel / Tilt steering/Telescopic steering
WARNING
Never adjust the steering wheel
whilst driving. You may lose
steering control and cause
severe personal injury, death or
accidents.
Information
After adjustment, sometimes the lockrelease
lever may not lock the steering
wheel.
It is not a malfunction. This occurs
when two gears are not engaged correctly.
In this case, adjust the steering
wheel again and then lock the steering
wheel.

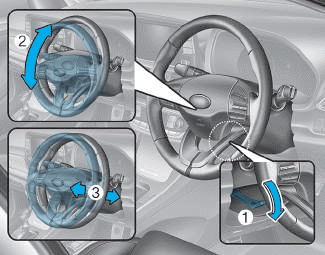

Pull down the lock-release lever (1)
on the steering wheel column and
adjust the steering wheel angle (2)
and position (3). Move the steering
wheel, so it points toward your chest,
not toward your face.
Make sure you can see the instrument
panel warning lights and
gauges.
After adjusting, pull up the lockrelease
lever (1) to lock the steering
wheel in place. Push the steering
wheel both up and down to be certain
it is locked in position. Always
adjust the position of the steering
wheel before driving.
Electric power steering (EPS)
The system assists you with steering
the vehicle. If the engine is off or if
the power steering system becomes
inoperative, the vehicle may still be
steered, but it will require increased
steering effort...
When the ignition switch is in the ON
position or when the engine is running,
press the heated steering
wheel button to warm the steering
wheel...
Other information:
Components and components location
Components
No
Connecter A
Connecter B
Connecter C
1
-
Battery (+)
Slide switch (Forward)
2
Reclining motor (Forward)
GND
Reclining switch (Forward)
3
Height motor (Up)
Battery (+)
Tilt switch (Up)
4
Slide motor (Forward)
-
Height switch (Up)
5
-
GND
-
6
Reclining motor (Backward)
B-CAN (High)
7
Tilt motor (Up)
B-CAN (High)
8
Tilt motor (Down)
IMS Switch 1
9
Height motor (Down)
Reclining switch (Forward)
10
Slide motor (Backward)
Slide sensor
11
Tilt sensor
12
-
13
Position sensor (Power)
14
IGN 1
15
Seat back slide switch (Forward)
16
Seat back reclining switch (Forward)
17
Tilt switch (Down)
18
Height switch (Down)
19
-
20
Ground
21
SET Switch
22
IMS Switch 2
23
Seat back limit switch (Backward)
24
Seat Reclining sensor
25
Seat height sensor
26
-
27
-
28
Battery (+)
Schematic diagrams
Circuit Diagram
Repair procedures
Removal
1...
Operating door locks from
outside the vehicle
Mechanical key
Turn the key toward the rear of the
vehicle to unlock and toward the front
of the vehicle to lock.
If you lock/unlock the driver's door
with a key, a driver’s door will
lock/unlock automatically...
