To unlock:

1. Carry the Smart Key.

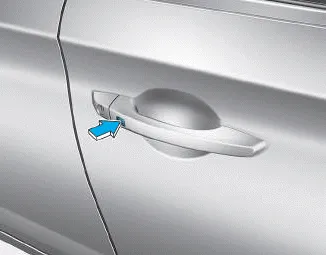

2. Either press the door handle button or press the Door Unlock button (2) on the smart key.

3. The doors will unlock. The hazard warning lights will blink two times. Also, the outside rearview mirror will unfold, if the outside rearview mirror folding switch is in the AUTO position. (if equipped)

Information

  • The door handle button will only operate when the smart key is within 0.7~1 m (28~40 in.) from the outside door handle. Other people can also open the doors without the smart key in possession.
  • After unlocking the doors, the doors will lock automatically after 30 seconds unless a door is opened.

    Locking

    To lock : 1. Close all doors, engine bonnet and tailgate. 2. Either press the door handle button or press the Door Lock button (1) on the smart key...

    Tailgate unlocking, Start-up

    Tailgate unlocking To unlock: 1. Carry the smart key. 2. Either press the tailgate handle button or press the Tailgate Unlock button (3) on the smart key for more than one second...
