Hyundai i30 (PD): Rear seats / Armrest, Carrying long/narrow cargo

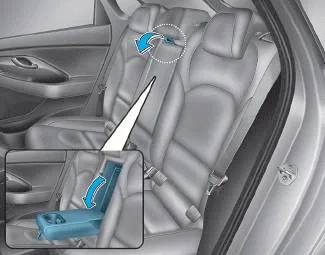

Armrest
The armrest is located in the centre of the rear seat. Pull the armrest down from the seatback to use it.

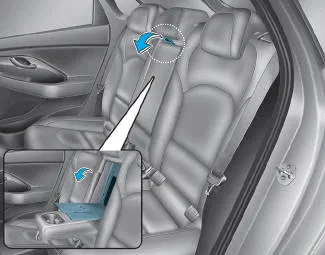

Carrying long/narrow cargo
Additional cargo space is provided to accommodate long/narrow cargo (skis, poles, etc.) not able to fit properly in the luggage compartment when closed.
1.Pull the armrest down.
2.Pull the cover down whilst pushing the release lever down.
CAUTION
- Be careful when loading cargo through the rear passenger seats to prevent damage to the vehicle interior.
- When cargo is loaded through the rear passenger seats, ensure the cargo is properly secured to prevent it from moving whilst driving.
WARNING
Cargo should always be secured to prevent it from being thrown about the vehicle in a collision and causing injury to the vehicle occupants. Do not place objects in the rear seats, since they cannot be properly secured and may hit the front seat occupants in a collision.
Folding the rear seat The rear seatbacks can be folded to facilitate carrying long items or to increase the luggage capacity of the vehicle. WARNING Never allow passengers to sit on top of the folded down seatback whilst the vehicle is moving.
The vehicle’s front and rear seats have adjustable head restraints. The head restraints provide comfort for passengers, but more importantly they are designed to help protect passengers from whiplash and other neck and spinal injuries during an accident, especially in a rear impact collision.
Other information:
Hyundai i30 (PD) 2018-2024 Owner's Manual: If the engine will not start
If the engine doesn't turn over or turns over slowly Be sure the shift lever is in N (Neutral) or P (Park) if it is an automatic transmission/dual clutch transmission vehicle. The engine starts only when the shift lever is in N (Neutral) or P (Park).
Hyundai i30 (PD) 2018-2024 Owner's Manual: Jack and tools
(1) Jack handle (2) Jack (3) Wheel nut wrench The jack, jack handle, and wheel nut wrench are stored in the luggage compartment under the luggage box cover. The jack is provided for emergency tyre changing only. Turn the winged hold down bolt counterclockwise to remove the spare tyre.
