Hyundai i30 (PD): Light bulbs / Headlamp and front fog lamp aiming

Headlamp aiming

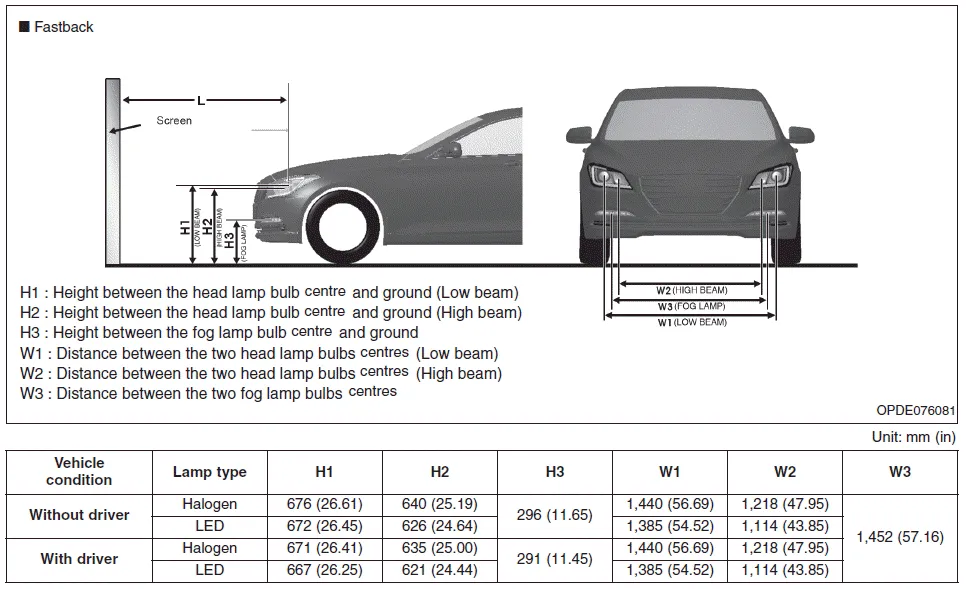

1. Inflate the tyres to the specified pressure and remove any loads from the vehicle except the driver, spare tyre, and tools.

2. The vehicle should be placed on a flat floor.

3. Draw vertical lines (Vertical lines passing through respective head lamp centres) and a horizontal line (Horizontal line passing through centre of head lamps) on the screen.

4. With the headlamp and battery in normal condition, aim the headlamps so the brightest portion falls on the horizontal and vertical lines.

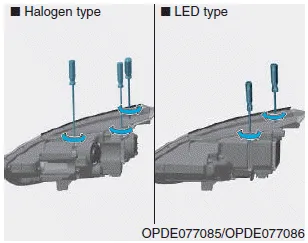

5. To aim the low beam left or right, turn the driver clockwise or counterclockwise. To aim the low beam up or down, turn the driver clockwise or counterclockwise. To aim the high beam up or down, turn the driver clockwise or counterclockwise.

Front fog lamp aiming

The front fog lamp can be aimed as the same manner of the headlamps aiming. With the front fog lamps and battery in normal condition, aim the front fog lamps. To aim the front fog lamp up or down, turn the driver clockwise or counterclockwise.

Aiming point

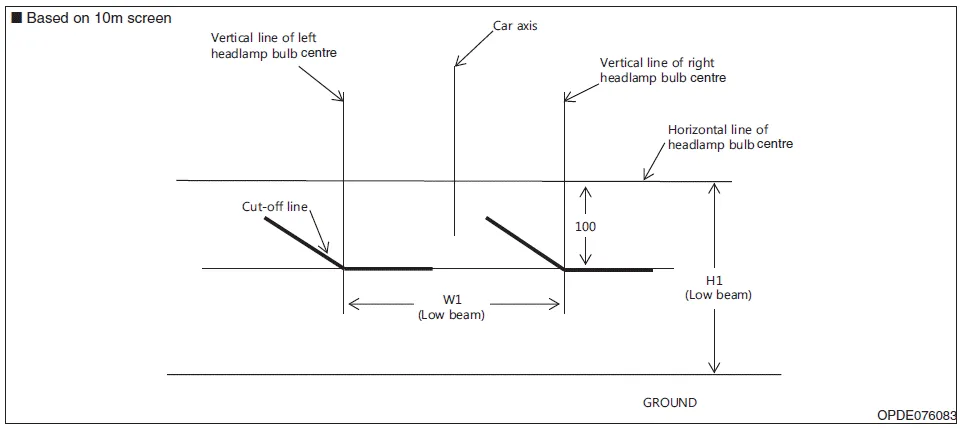

Headlamp low beam

1. Turn the low beam on without driver aboard.

2. The cut-off line should be projected in the cut-off line shown in the picture.

3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.

4. If headlamp levelling device is equipped, adjust the head lamp levelling device switch with 0 positions.

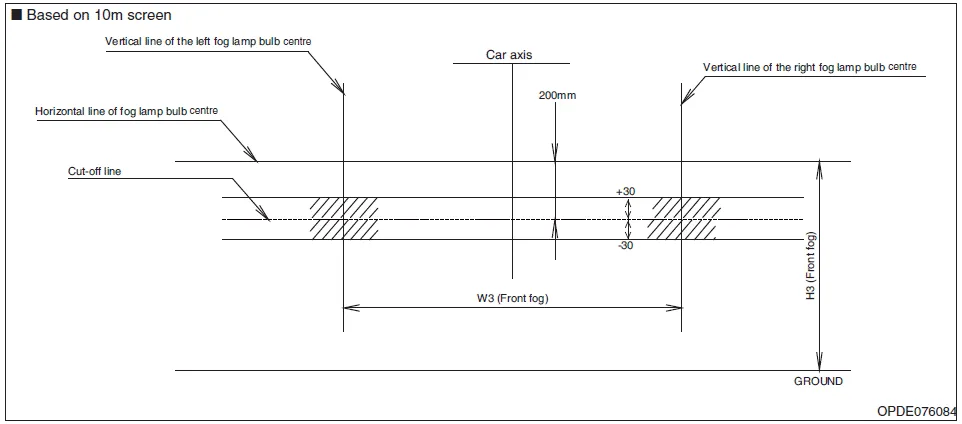

Front fog lamp

1. Turn the front fog lamp on without the driver aboard.

2. The cut-off line should be projected in the allowable range (shaded region).
