Hyundai i30 (PD): Manual heating and air conditioning / Fan speed control. Air conditioning. OFF mode

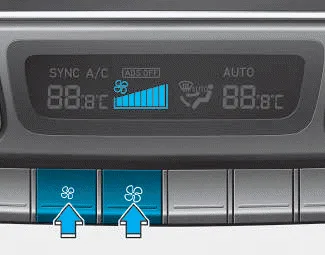

Fan speed control
The fan speed can be set as desired by pushing the fan speed control button.
More air is delivered with higher fan speeds.
Pressing the OFF button turns off the fan.
NOTICE
Operating the fan when the ignition switch is in the ON position could cause the battery to discharge. Operate the fan when the engine is running.

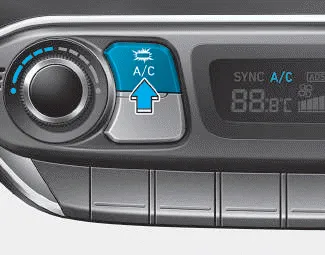

Air conditioning
Push the A/C button to turn the air conditioning system on (indicator light will illuminate).
Push the button again to turn the air conditioning system off.

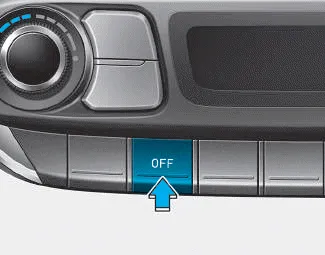

OFF mode
Push the OFF button to turn the climate control system off. However, you can still operate the mode and air intake buttons as long as the ignition switch is in the ON position.
This is used to select the outside (fresh) air position or recirculated air position. To change the air intake control position, push the control button.
Ventilation 1. Set the mode to the position. 2. Set the air intake control to the outside (fresh) air position. 3. Set the temperature control to the desired position.
