Hyundai i30 (PD): What to do in an emergency / If you have a flat tyre (with tyre mobility kit)

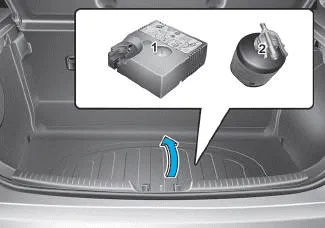

â– Type A

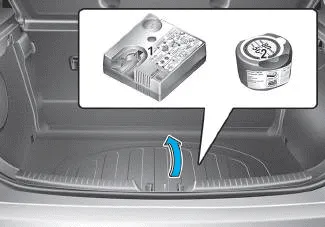

â– Type B
For safe operation, carefully read and follow the instructions in this manual before use.
(1) Compressor
(2) Sealant bottle
The Tyre Mobility Kit is a temporary fix to the tyre and we recommend that the system be inspected by a HYUNDAI authorised repairer.
CAUTION
When two or more tyres are flat, do not use the tyre mobility kit because the supported one sealant of Tyre Mobility Kit is only used for one flat tyre.
WARNING
Do not use the Tyre Mobility Kit to repair punctures in the tyre walls. This can result in an accident due to tyre failure.
WARNING
The tyre inflation pressure must be at least 32 psi (220 kPa). If it is not, do not continue driving.
Call for road side service or towing.
Introduction
With the Tyre Mobility Kit you stay mobile even after experiencing a tyre puncture.
The system of compressor and sealing compound effectively and comfortably seals most punctures in a passenger car tyre caused by nails or similar objects and reinflates the tyre.
After you ensured that the tyre is properly sealed you can drive cautiously on the tyre (distance up to 200 km (120 miles)) at a max. speed of 80 km/h (50 mph) in order to reach a service station or tyre dealer to have the tyre replaced.
It is possible that some tyres, especially with larger punctures or damage to the sidewall, cannot be sealed completely.
Air pressure loss in the tyre may adversely affect tyre performance. For this reason, you should avoid abrupt steering or other driving manoeuvres, especially if the vehicle is heavily loaded or if a trailer is in use.
The Tyre Mobility Kit is not designed or intended as a permanent tyre repair method and is to be used for one tyre only. This instruction shows you step by step how to temporarily seal the puncture simply and reliably. Read the section "Notes on the safe use of the Tyre Mobility Kit".
WARNING
Do not use the TMK if a tyre is severely damaged by driving run flat or with insufficient air pressure.
Only punctured areas located within the tread region of the tyre can be sealed using the TMK.
- Notes on the safe use of the Tyre Mobility Kit
- Components of the Tyre Mobility Kit
- Using the Tyre Mobility Kit
- Checking the tyre inflation pressure
The actual Jack label in the vehicle may differ from the illustration. For more detailed specifications, refer to the label attached to the jack. 1.
Park your car at the side of the road so that you can work with the Tyre Mobility Kit away from moving traffic. To be sure your vehicle will not move, even when you're on fairly level ground, always set your parking brake.
