Hyundai i30 (PD): Lane departure warning (LDW) system / LDW system operation

To activate/deactivate the LDW system:

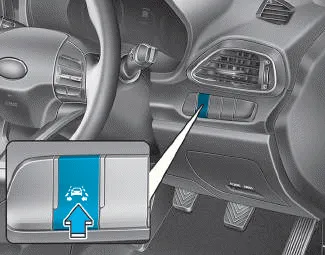

With the ignition switch in the ON position, press the LDW system button located on the instrument panel on the lower left hand side of the driver.

The indicator in the cluster display will initially illuminate white. This indicates the LDW system is in the READY but NOT ENABLED state.

The colour of indicator will change depending on the condition of LDW system.

- White : Sensor does not detect lane lines or vehicle speed is under 60 km/h (37 mph).
- Green : Sensor detects lane lines.

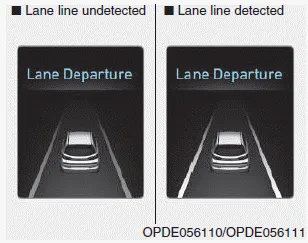

• To see the LDW screen on the LCD display in the cluster, select ASSIST mode (). For more information, refer to "LCD Display Modes" in chapter 3.
• If the system detects a lane line, the colour changes from gray to white.
• If the system detects the left lane line, the left lane line colour will change from gray to white.
• If the system detects the right lane line, the right lane line colour will change from gray to white.
• If your vehicle speed exceeds 40 mph (60 km/h) and the LDW system button is ON, the system is enabled. If your vehicle departs from the projected lane in front of you, the LDW system operates as follows:

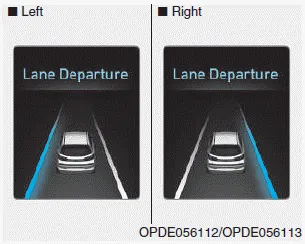

A visual warning appears on the cluster LCD display. Either the left lane line or the right lane line in the cluster LCD display will blink depending on which direction the vehicle is veering.
