Hyundai i30 (PD): Windscreen defrosting and defogging / Manual climate control system

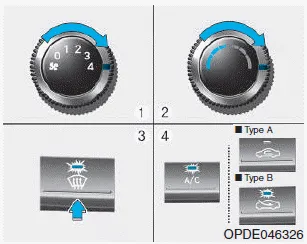

To defog inside windscreen
1. Select any fan speed except “0” position.
2. Select the desired temperature.
3. Select the
or
position.
4. The outside (fresh) air will be selected
automatically. Additionally, the air
conditioning (if equipped) will automatically
operate if the mode is
selected to the
position.
If the air conditioning and outside (fresh) air position are not selected automatically, press the corresponding button manually.
To defrost outside windscreen
1. Set the fan speed to the highest (extreme right) position.
2. Set the temperature to the extreme hot position.
3. Select the
position.
4. The outside (fresh) air and air conditioning (if equipped) will be selected automatically.
WARNING Windscreen heating Do not use the or position during cooling operation in extremely humid weather. The difference between the temperature of the outside air and that of the windscreen could cause the outer surface of the windscreen to fog up, causing loss of visibility.
To defog inside windscreen 1. Select the desired fan speed. 2. Select the desired temperature. 3. Press the defroster button (). 4. The air-conditioning will turn on according to the detected ambient temperature, outside (fresh) air position and higher fan speed will be selected automatically.
