Hyundai i30 (PD): Towing / Removable towing hook

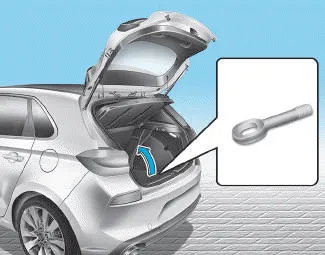

1. Open the tailgate, and remove the towing hook from the tool case.

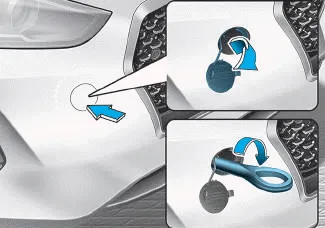

■ Front

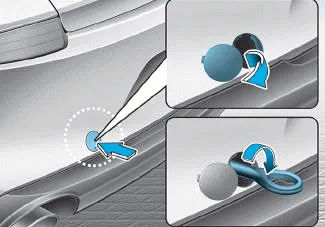

■ Rear
2. Remove the hole cover pressing the lower part of the cover on the bumper.
3. Install the towing hook by turning it clockwise into the hole until it is fully secured.
4. Remove the towing hook and install the cover after use.
Towing service If emergency towing is necessary, we recommend having it done by a HYUNDAI authorised repairer or a commercial tow-truck service.
■ Front ■ Rear If towing is necessary, we recommend you have it done by a HYUNDAI authorised repairer or a commercial tow truck service.
