Hyundai i30 (PD): Air bag - supplemental restraint system / Where are the air bags?

Driver’s and passenger’s front air bags

Your vehicle is equipped with a Supplemental Restraint System (SRS) and lap/shoulder belts at both the driver and passenger seating positions.

The SRS consists of air bags which are located in the centre of the steering wheel, in the driver’s side lower crash pad below the steering wheel, and the passenger's side front panel pad above the glove box.

The air bags are labeled with the letters “AIR BAG” embossed on the pad covers.

The purpose of the SRS is to provide the vehicle's driver and front passengers with additional protection than that offered by the seat belt system alone in case of a frontal impact of sufficient severity.

WARNING

To reduce the risk of serious injury or death from inflating front air bags, take the following precautions:

• Seat belts must be worn at all times to help keep occupants positioned properly.
• Move your seat as far back as possible from front air bags, whilst still maintaining control of the vehicle.
• Never lean against the door or centre console.
• Do not allow the front passenger to place their feet or legs on the dashboard.
• No objects (such as crash pad cover, mobile phone holder, cup holder, perfume or stickers) should be placed over or near the air bag modules on the steering wheel, instrument panel, windscreen glass, and the front passenger's panel above the glove box. Such objects could cause harm if the vehicle is in a crash severe enough to cause the air bags to deploy.
• Do not attach any objects on the front windscreen and inside mirror.

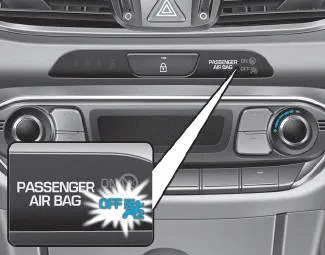

Passenger’s front air bag ON/OFF switch

The purpose of the switch is to disable the passenger’s front air bag in order to transport occupants who are at increased risk for air bag-related injury due to age, size, or medical condition.

To deactivate the passenger’s front air bag:

Insert the key or a similar rigid device into the passenger’s front air bag ON/OFF switch and turn it to the OFF position. The passenger air bag OFF indicator () will illuminate and stay on until the passenger’s front air bag is reactivated.

To reactivate the passenger’s front air bag:

Insert the key or a similar rigid device into the passenger’s front air bag ON/OFF switch and turn it to the ON position. The passenger air bag ON indicator () will illuminate and stay on for 60 seconds.

Information

The passenger’s front air bag ON/OFF indicator illuminates for about 4 seconds after the ignition switch is placed in the ON position.

WARNING

Never allow an adult passenger to ride in the front passenger seat when the passenger air bag OFF indicator is illuminated. During a collision, the air bag will not inflate if the indicator is illuminated. Turn on the passenger’s front air bag or have your passenger move to the rear seat.

WARNING

If the passenger’s front air bag ON/OFF switch malfunctions, the following conditions may occur:

• The air bag warning light () on the instrument cluster will illuminate.
• The passenger air bag OFF indicator () will not illuminate and the ON indicator () will come on and go off after approximately 60 seconds. The passenger’s front air bag will inflate in a frontal impact even though the passenger’s front air bag ON/OFF switch is set to the OFF position.
• We recommend that a HYUNDAI authorised repairer inspect the passenger’s front air bag ON/OFF switch and the SRS air bag system as soon as possible.
