Hyundai i-30: Clutch Tube / Components and components location

Hyundai i30 (PD) 2018-2023 Service Manual / Clutch System / Clutch Tube / Components and components location

Components

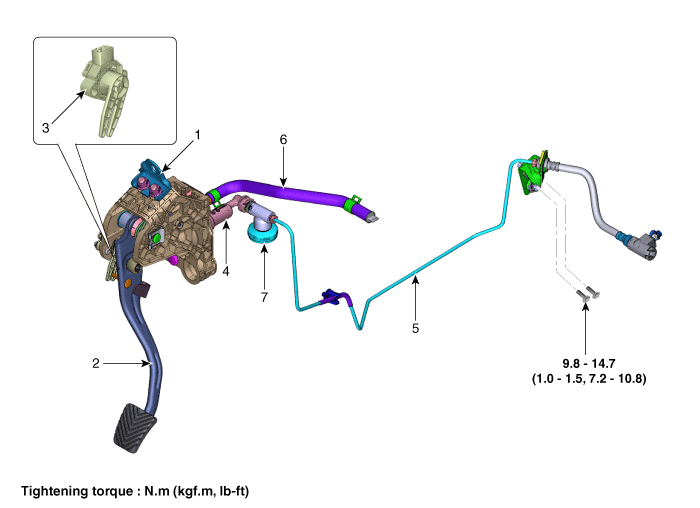

[Gasoline 1.0 T-GDI]

1. Clutch pedal assembly
2. Clutch pedal arm
3. Ignition lock & clutch switch
4. Clutch master cylinder
5. Clutch tube
6. Reservoir hose
7. Regulator

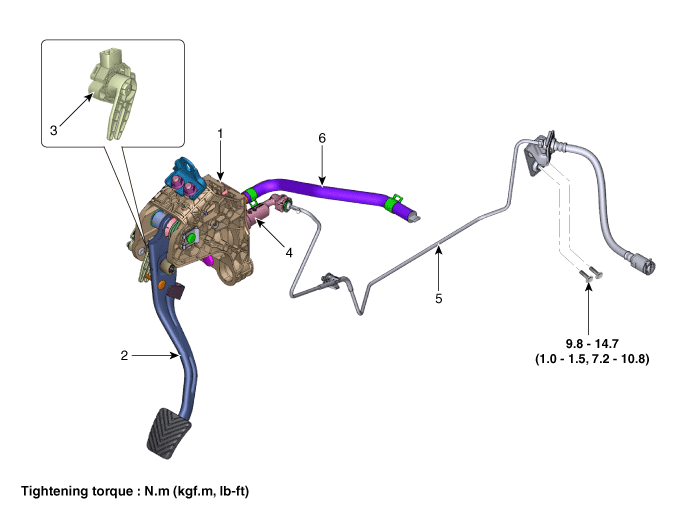

[Gasoline 1.5 MPI]

1. Clutch pedal assembly
2. Clutch pedal arm
3. Ignition lock & clutch switch
4. Clutch master cylinder
5. Clutch tube
6. Reservoir hose

[Diesel 1.6 TCI]

1. Clutch pedal assembly
2. Clutch pedal arm
3. Ignition lock & clutch switch
4. Clutch master cylinder
5. Clutch tube
6. Reservoir hose
7. Regulator

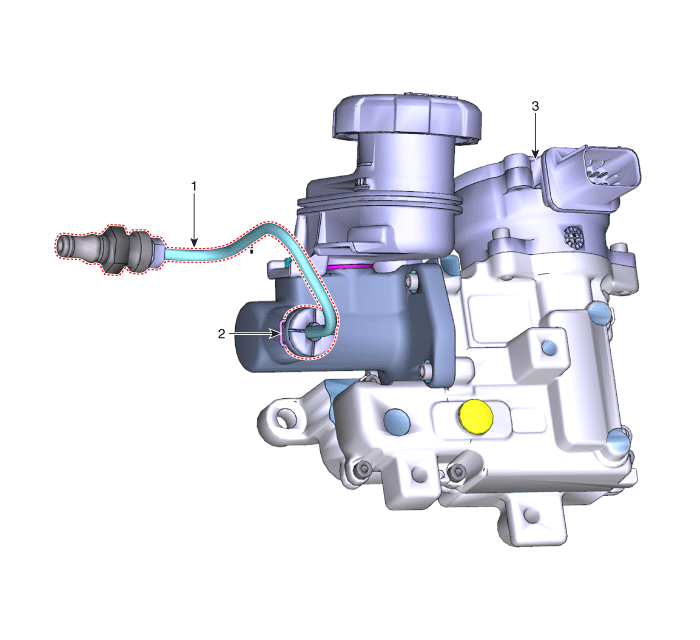

[Gasoline 1.0 T-GDI] [IMT]

1. Clutch tube
2. Clip
3. Electronic clutch actuator

Gasoline 1.0 T-GDI / Diesel 1.6 TCI] [IMT]

1. Clutch tube
2. Clip
3. Electronic clutch actuator

    Clutch Tube

    ..

    Repair procedures

    Removal [Manual Transaxle Type] 1. Turn ignition switch OFF and disconnect the negative (-) battery cable...
