Hyundai i30 (PD) 2018-2023 Service Manual / Clutch System / Clutch Regulator / Components and components location

Components

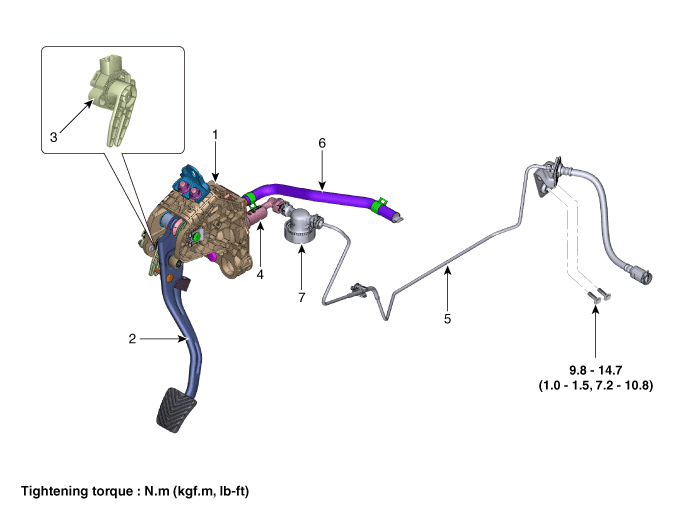

[Gasoline 1.0 T-GDI]

1. Clutch pedal assembly
2. Clutch pedal arm
3. Ignition lock & clutch switch
4. Clutch master cylinder
5. Clutch tube
6. Reservoir hose
7. Regulator

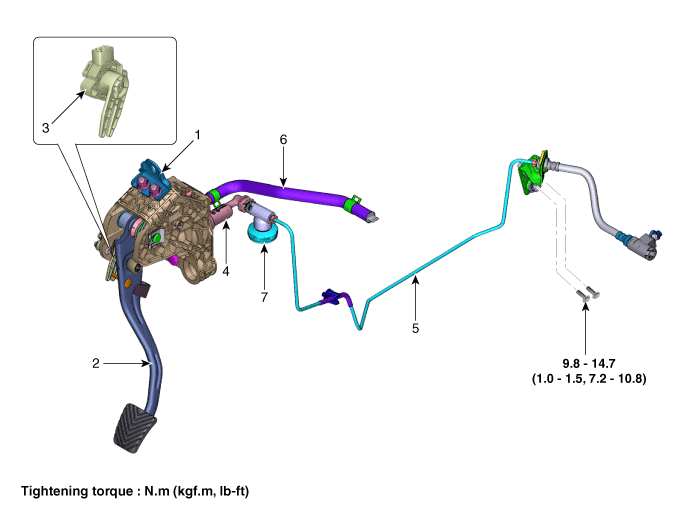

[Gasoline 1.5 MPI]

1. Clutch pedal assembly
2. Clutch pedal arm
3. Ignition lock & clutch switch
4. Clutch master cylinder
5. Clutch tube
6. Reservoir hose

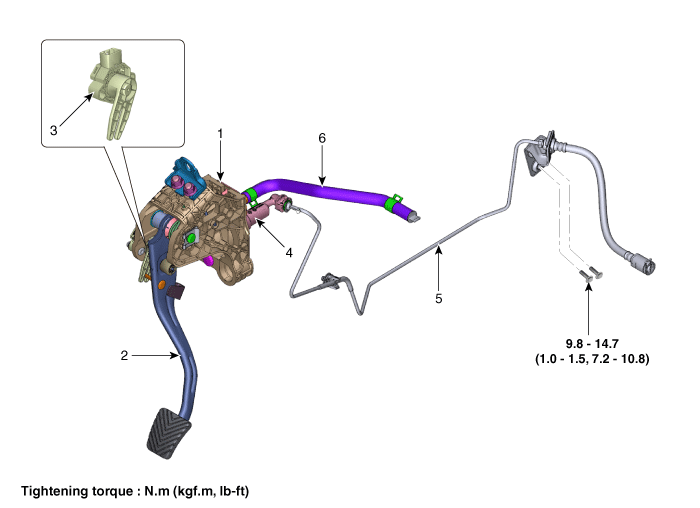

[Diesel 1.6 TCI]

1. Clutch pedal assembly
2. Clutch pedal arm
3. Ignition lock & clutch switch
4. Clutch master cylinder
5. Clutch tube
6. Reservoir hose
7. Regulator

    Clutch Regulator

    ..

    Repair procedures

    Removal [Gasoline 1.0 T-GDI] 1. Remove the snap pins (A) and the regulator (B).    • Do not spill brake fluid on the vehicle it may damage the paint if brake fluid does contact the paint, wash it off immediately with water...
